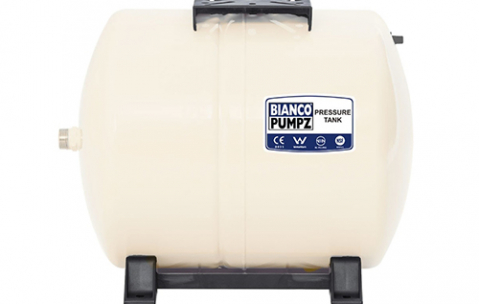

BIA-BPT-60H - Bianco Pressure Tank 60 Litre Horizontal Almond 4 Bar Pre-Charge

$299.00
Brand Bianco Pumpz
Model BIA BPT-60H
Availability In Stock
General information

PRODUCT DESCRIPTION

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

A pressure tank is engineered to optimize the performance of your pressure pumping system by storing a volume of pressurised water.

This increases the draw-down in the case of small water demand or leaks thus saving your pump from excessive starts and stops.

A pressure tank protects and extends the life of your pump and will reduce noise and needless power consumption.



Applications

  • Booster Systems

  • Borehole Systems

  • Sprinklers

  • Irrigation Systems

  • HVAC

  • Thermal Expansion

  • Water hammer arresting



SPECIFICATIONS

  • Nominal volume: 60L

  • Nominal Draw-off:18L

  • Continuous max. temp 90°C

  • Continuous max. pressure: 10 Bar (145PSI)

  • Pre-charge: 2 Bar (58PSI)

  • Diameter: 390mm

  • Height: 428mm

  • Length: 536 mm

  • Net Weight: 9.9Kg

  • System Connection: GI

  • Colour: Almond



FEATURES & BENEFITS

  • 304 Stainless Steel water connection

  • Corrosion resistant for long life

  • UV resistant epoxy coating with a minimum thickness of 30 micron in Almond

  • Air valve with sealing cap eliminates leaks

  • Food grade approved high-grade diaphragm ACS, AS/NZS4020



Warranty

5 Year Tank Replacement Guarantee



Documents

Product Information and Data Sheets

Download Product Information & Data Sheetsv1.0

Operation and Installation Manuals

Download Operation & Installation Manualsv1.0





Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Brand
    Bianco Pumpz
  • Product Type
    Pressure Tank
  • Bar
    4 bar
  • Diameter
    390 mm
  • Draw Off (Litres)
    18
  • Height
    428 mm
  • Litres
    60
  • Port Size Outlet
    1 inch BSPM
  • Warranty
    5 Years
