Descriptions

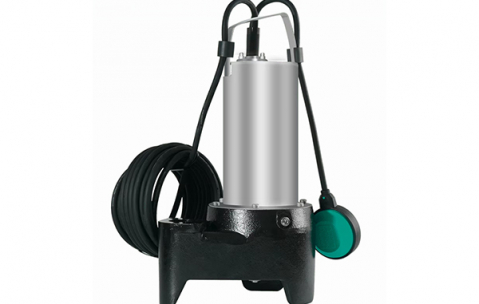

Submersible pump for stationary and portable wet well installation in intermittent operation.

For the pumping in household (domestic) areas of:

• Sewage without faeces
• Wastewater (with small amounts of sand and gravel)

Sewage pump with vortex impeller.

Discharge port with vertical threaded connection and pre-assembled hose nipple.

Pump housing made of grey cast iron, impeller made of plastic. Surface-cooled single-phase motor (operating capacitor integrated) with self-switching thermal motor monitoring.

Motor housing made of stainless steel. Oil-filled sealing chamber with double sealing: rotary shaft seal on motor side, mechanical seal on pump side.

Connection cable (detachable) with float switch and type I plug.

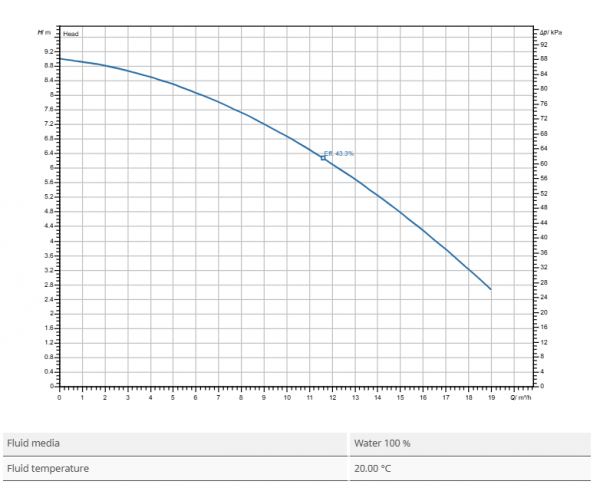

Performance Curve
