Yonos MAXO-Z 30/0,5-7 PN 10

$1,439.00
Brand Wilo
Model Yonos MAXO-Z 30/0,5-7
Availability In Stock
General information

Description

The efficient solution for sanitary standard of domestic hot water circulation in commercial buildings.

The Wilo-Yonos MAXO-Z is any efficient solution for a high sanitary standard of domestic hot water circulation in commercial buildings.

It offers complete transparency of the delivery head, speed and possible faults thanks to its LED display.

The compact design and the Wilo-Plug for the electric connection simplify the installation.

The green knob ensures an easy handling of the pump.



Design

Glandless circulator with threaded connection or flange connection, EC motor with automatic power adjustment.



Application

Domestic hot water circulation systems in industry and building services.

 Benefits

• High drinking water hygiene ensured through collective fault signal

 Energy-saving due to high-efficiency hydraulics and synchronous motor

• Complete transparency of the delivery head, speed and possible faults thanks to its LED display

 Simple adjustment over three speed stages using the green button when replacing an uncontrolled standard pump

 Easier electrical connection thanks to the Wilo plug

• Compact design and proven user-friendliness



Standard-equipped with

 Preselectable control modes for optimum load adjustment: Δp-c (constant differential pressure), Δp-v (variable differential pressure)

 3 speed stages (n = constant)

 LED for setting the setpoint and displaying error messages

 Electrical connection with the Wilo plug

 Fault signal light and contact for collective fault signal



Wilo-Yonos Maxo-Z

8

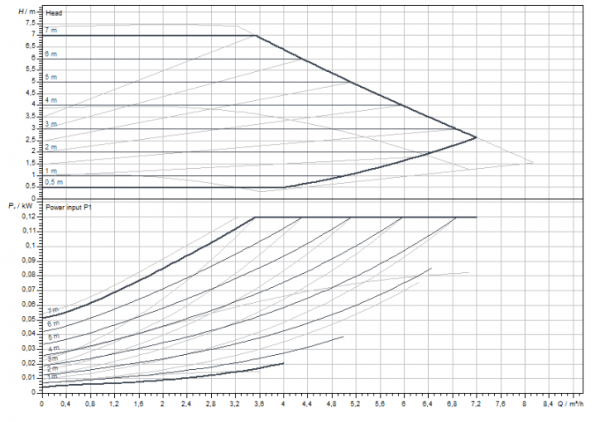

 WeChat Image 20230706154930





Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Model
    Yonos MAXO-Z 30/0,5-7
  • Type
    Hot water circulation pump
  • Maximum operating pressure PN
    10 bar
  • Max. permitted total water hardness
    3.57 mmol/l (20°dH)
  • Energy efficiency index (EEI)
    0.20
  • Mains connection
    1~230 V, 50/60 Hz
  • Rated power P2
    0.09 kW
  • Rated current IN
    1 A
  • Min. speed nmin
    1000 1/min
  • Max. speed nmax
    3700 1/min
  • Power consumption P1 min
    5 W
  • Power consumption P1 max
    120 W
  • Warranty
    2 years
