Stratos MAXO 32/0,5-16 PN6/10-R7

$4,709.00
Brand Wilo
Model Stratos MAXO 32/0,5-16 PN6/10-R7
Availability In Stock
General information

Description

With optimised and innovative energy-saving features, the Wilo-Stratos MAXO sets new standards for commercial HVAC and drinking water applications in terms of energy efficiency.

Its outstanding user-friendliness makes operating the pump easier than ever before.

Construction

Smart glandless circulator with screwed connection or flange connection, EC motor with integrated electronic power adjustment.

Application

Hot-water heating systems, air-conditioning systems, closed cooling circuits, industrial circulation systems.

Benefits

• Intuitive operation by application-guided settings with the Setup Guide plus the combination of a new display and operating button using the Green Button Technology

 Maximum energy efficiency thanks to the combination of optimised and innovative energy-saving functions (e.g. No-Flow Stop)

• Optimum system efficiency thanks to new and innovative intelligent control functions, such as Dynamic Adapt plus, Multi-Flow Adaptation, T-const. and ΔT-const.

 Latest communication interfaces (e.g. Bluetooth) for connecting to mobile terminal devices and direct pump networking using Wilo Net for multiple pump control

 Maximum convenience in electrical installation thanks to a clearly arranged and spacious terminal room and the optimised Wilo-Connector



Product features

• Cataphoretic-coated grey cast iron pump housing

• Thermal insulation shell

• EC motor technology

• Full graphic display with setting assistant

• Interfaces to building automation

• Bluetooth interface

• Green Button Technology

• Cable connections and terminals

• Wilo-Connector


Colour display

• Home screen

• Control mode

• Device settings, diagnostics and measured values

• Setpoint display

• Duty point/measured values

• Restore/reset and help

• Active influencing factors

• Context menu for additional information and settings

• Back/Context button, Green Button



Wilo-Stratos MAXO

WeChat Image 20230706161542

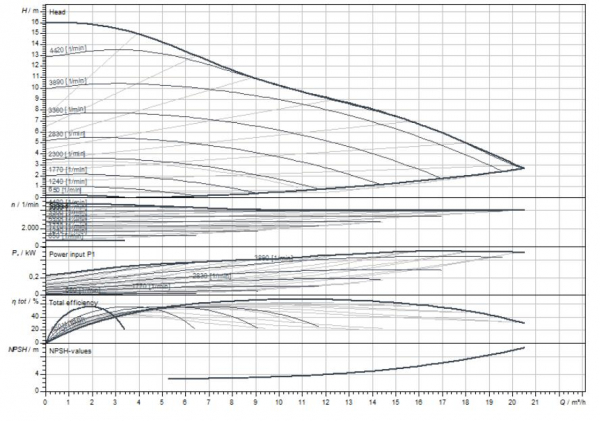

 curve19



Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Model
    Stratos MAXO 32/0,5-16 PN6/10-R7
  • Type
    Hot water circulation pump
  • Maximum operating pressure PN
    10 bar
  • Head max H max
    16.1 m
  • Flow max Q max
    21.0 m³/h
  • Minimum suction head at 50 °C m
    5 m
  • Minimum suction head at 95 °C m
    10 m
  • Minimum suction head at 110 °C
    18 m
  • Energy efficiency index (EEI)
    0.17
  • Mains connection
    1~230 V ±10%, 50/60 Hz
  • Min current Imin
    0.2 A
  • Max current Imax
    2.23 A
  • Rated power P2
    433 W
  • Min. speed nmin
    650 1/min
  • Max. speed nmax
    4950 1/min
  • Power consumption P1 min
    10 W
  • Power consumption P1 max
    510 W
  • Threaded cable connection
    5 x M16x1.5
  • Warranty
    2 years
