Shimge BWJ4-2 Stainless Steel Multi-Stage Centrifugal Pump NO POWER LEAD

$365.00
Brand Shimge
Model BWJ4-2
Availability In Stock
General information



"SHIMGE" is specialising in manufacturing water pumps for 30 years, and it is one of the most famous listed companies in China. The annual production of water pumps is more than 1.5 million. To make sure the quality of the products, SHIMGE has currently passed ISO9001, ISO14001 and OHSAS18001 certification, introduced excellent performance management in line with GB/T 19580 and established a sound quality assurance system. SHIMGE has equipped an industry-leading physiochemical testing centre, and its delivery performance inspection platform has reached a precision of grade B (grade 1) in the evaluation conducted by an authoritative agency. In addition, its products have passed GS, CE and UL certification , and met the specifications of the RoHS Directive.

SHIMGE has become one of the top brands in the world, unparalleled quality and comparable to Grundfos & Will.

BW, BWJ(T) stainless steel horizontal multistage centrifugal pumps are non-self priming pumps used for transporting liquid. They are classified into two kinds: cylinder type and sectional type. They adopt horizontal motor and alloy mechanical seal, which makes the replacement more convenient. The overflowing part of the horizontal process pump is made of stainless steel 304, applicable for light-corrosion medium. Relying on the high efficiency, energy saving performance, reliable quality, wide usable range, our products receive the great popularity after being launched.



FEATURES

  • All Stainless Steel, long life service
  • Suitable for air conditioner & cooling system, industrial cleansing, water processing & Aquaculture
  • Single phase 220V/50Hz
  • BWJ4-2: 2 Stages
  • Output power: 0.37kw
  • Max. head:19m
  • Max Flow: 117 L/min
  • Temperature range of medium: Normal type 0~+68℃
  • Maximum working pressure: 4 bar
  • Japanese NSK Bearing, Full-enclosed and ventilating two-pole standard motor
  • 2 Year Warranty



APPLICATION FIELDS

  • Air conditioner system
  • Aquaculture
  • Cooling System
  • Industrial cleansing
  • Environmental application
  • Water processing(Water purification)
  • Fertilization/measuring system
  • Other special applications



IN THE BOX

  • 1 x Centrifugal Pump
  • 1 x Warranty Card
  • 1 x User's Manual

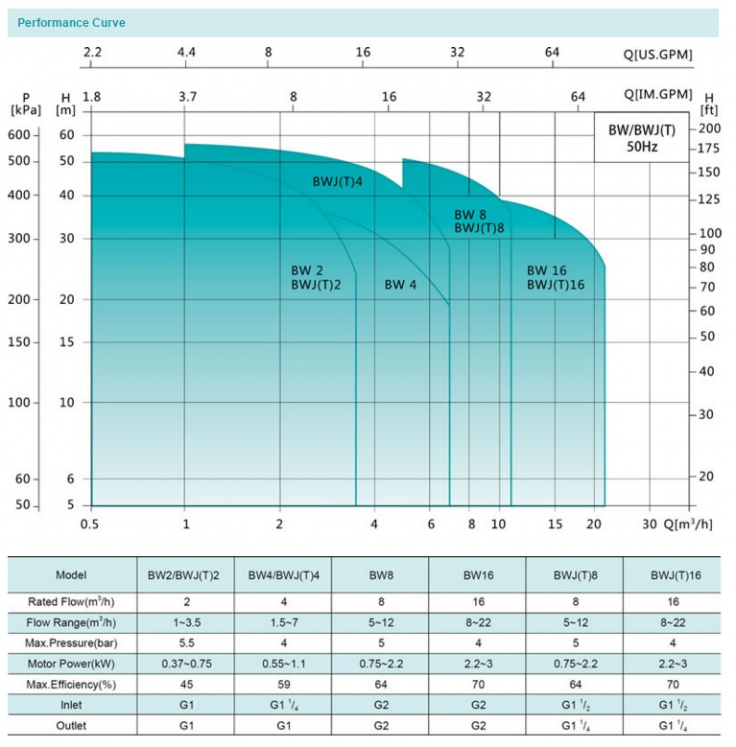

BWJ Curve2

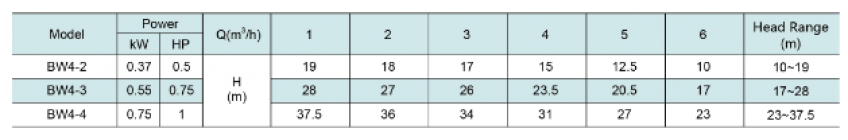

loweroverview3

Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Manufacturer:
    Shimge
  • Motor:
    Full-enclosed and ventilating two-pole standard motor
  • Output power:
    0.37 kw
  • Insulation class:
    F
  • Protection class:
    IP55
  • Standard voltage (50Hz):
    Single phase 220V
  • Outlet Size:
    G1"
  • Inlet Size:
    G1 1/4"
  • Max head:
    19 m
  • Max flow:
    117 l/min
  • Temperature range of medium:
    Normal type 0~+68℃, hot water type 0~+120℃
  • Max ambient temperature:
    +40 ℃
  • Max working pressure:
    4 bar
  • pH:
    6.5 to 8.5
  • Weight:
    10 kg
  • Warranty:
    2 years
