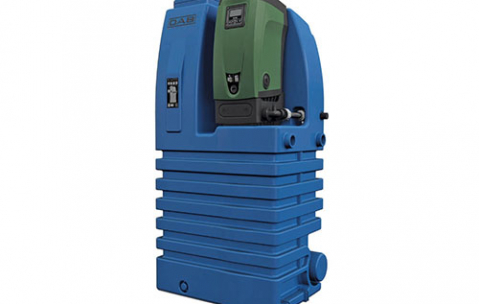

DAB-ESYTANK - Drinking Water Storage Tank for DAB E.SYBOX

Brand DAB
Availability In Stock
General information

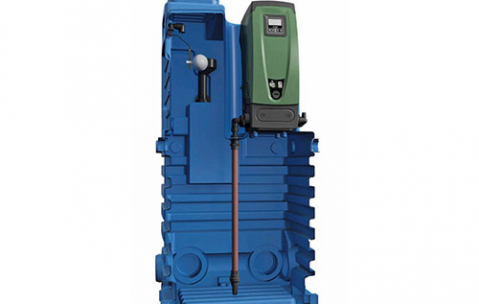

E.SYTANK is designed as a break tank between mains and E.SYBOX. It has a net capacity of 480 litres and is suitable for drinking water. It has a valve for filling from the mains with a float and an overflow system. The tank is complete with an

E.SYDOCK, a suction pipe with footvalve, and a delivery pipe.



Used where direct connection to incoming water mains is not legal or input flow is lower than pump output.

Maximum liquid temperature: 40°C

Maximum environment temperature: 50°C

Maximum capacity: 480 litres

Dimensions of mains water inlet pipe: ¾”

Dimensions of delivery pipe: 1”

Dimensions of overflow pipe connection: 2”

Dimensions of front discharge (not drilled): 1-1/4”

Dimensions of discharge lower discharge (not drilled): DN20



E.SYTANK is a drinking water storage tank, designed with integration of the E.SYBOX booster pump system. Complete tank and pump system to boost mains water supply in domestic/ residential and light commercial applications. E.SYTANK capabilities include:

• Catering for the water requirement, if the public distribution main is insufficient.

• Compliance with civil water regulations where pumping systems cannot draw directly from the distribution mains. Avoiding the reflux and possible contamination of water back into the distribution mains.

• Use as intermediate tanks in tall buildings dividing a pressure boosting system into several areas. The E.SYTANK and E.SYBOX solution creates a complete pressure boosting system with high-efficiency, allowing:

• Notable reduction of required space

• Dimensions suitable for passing through cellar door ways

• Tank supplied complete with all the accessories for rapid installation

• Full integration and simple installation of E.SYBOX

• Recyclable Materials

• Tank suitable for potable water



Product Information and Data Sheets

Download Product Information & Data Sheetsv1.0

Spare Parts Information and Exploded Diagrams

Download Spare Parts Information & Exploded Diagramsv1.0

Operation and Installation Manuals

Download Operation & Installation Manualsv1.0

Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Brand
    DAB Pumps
  • Operating range
    maximum flow rate 120 l/min, head up to 65 m
  • Maximum liquid temperature
  • Maximum environment temperature
  • Maximum capacity
    480 litres
  • Maximum system pressure (c/e.sybox)
    8 bar
  • Supply pressure allowed at mains water inlet
    max. 6 bar
  • Warranty
    2 years
