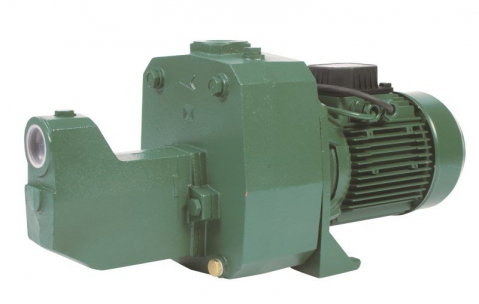

DAB-251M - PUMP SURFACE MOUNTED CAST IRON 120L/MIN 62M 1.85KW 240V

$1,299.00
Brand DAB
Model DAB-251M
Availability In Stock
General information
Technical Specifications
Brand DAB Pumps
Product Type Multistage Jet Pump
Suitable For Tank Transfer
Bar 6.2 Bar
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 120 L/min
Hp 2.5 Hp
kPa 628 kPa
Kilo Watts 1.85 kW
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m) 62 m
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Warranty (months) 24 Months
Volts 240 V
Watts 1850 W
Description
Self Priming Multistage Jet Assisted Cast Iron Jet Pump

Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.

1.85kW, 2.5hp, 240V, max hd 62m, max flow 120L/m Ports 1 1/4” BSPF In, 1" BSPF Out

Warranty

2 Year DAB Pumps Warranty

Handy Hints for Installing Your Jet Pump
  • Location: The pump should be located as close to the water source as possible and should be protected from the elements
  • Piping: Only use pipe that is in good condition and free of rust or scale
  • Types of Pipe: Plastic or galvanised steel can be used with jet pumps
  • Water to Pump Piping: All offset piping should slope upwards from water source to pump.



Documents:
Product Information and Data Sheets

Download Product Information & Data Sheetsv1.0

Download Product Information & Data Sheetsv1.01

Download Product Information & Data Sheetsv1.02

Spare Parts Information and Exploded Diagrams

Download Spare Parts Information & Exploded Diagramsv1.0

Download Spare Parts Information & Exploded Diagramsv1.03

Operation and Installation Manuals

Download Operation & Installation Manualsv1.0

Certificates & Compliance Information

Download Certificates & Compliance Informationv1.0

Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Rated voltage:
    240V/50Hz 1.85KW
  • Suitable For
    Dam Water, Creek Water pumping
  • Max Flow (L/min)
    120 L/min
  • Max Head (m)
    62m
  • Port Size Inlet
    1 1/4 inch BSPF inlet
  • Port Size Outlet
    1 inch BSPF outlet
  • Warranty (months)
    24 Months
