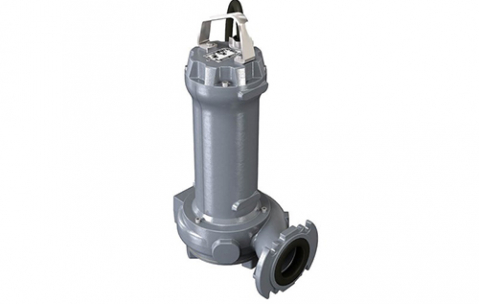

ZEN-DRG1000/2/80HA0FTEX - Zenit Grey Drainage Pump ATEX 7.5kW

Model ZEN DRG1000/2/80HA0FTEX
Availability In Stock
General information


7.5kW, 10hp, 415V without float switch, max hd 34.9m, max flow 45.1 L/s, Outlet DN 80

ATEX certified Ex d.

Suitable for use in applications that have unstrained soiled biological wastewaters and sewer systems and also fot civil lifting applications.
The DRG can be used in wastewater treatment plants,sewer systems, livestock farms, industry and agriculture.
Cast iron construction with 2 opposed silicon carbide mechanical seals in an inspectable oil sump, anticlogging system.

Requires ZENS9024.006 Ring Stand for free standing operation
3 phase pumps require contactor and overload.



• Electrical submersible pumps in GJL-250 cast iron;

• Two silicon carbide (2SiC) mechanical seals in oil sump;

• Ecological dry motor with thermal protection;

• Sensor for detecting water in the mechanical seal oil sump;

• Self lubricated ball bearings




Documents below are available for download
Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Brand
    Zenit Pumps
  • Product Type
    Submersible Pump
  • Suitable For
    Water and Sewage
  • Approval
    ATEX certified Ex d.
  • Max Flow (L/sec)
  • Kilo Watts
    7.5 Kw
  • Max Head (m)
  • Port Size Outlet
    DN 80
  • Series
  • Warranty (months)
  • Volts
    415 V
