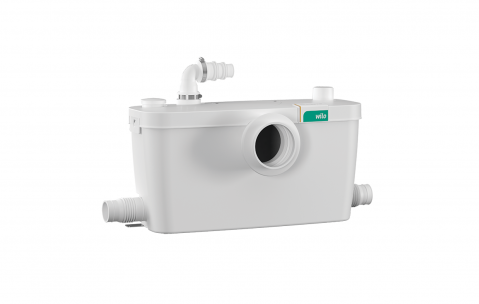

Wilo HiSewlift 3-35 Compact Sewage Lifting unit with Macerator

$719.00
Brand Wilo
Model Wilo-HiSewlift 3-35
Availability Out of Stock
General information

Introducing the HiSewlift 3! Wilo's small sewage lifting unit with macerator.

  • This little guy is made narrow for a simple front-wall installation.
  • Low-noise operation and installed active carbon filter for high user comfort.
  • Reliable capacity (!!!) and low electricity consumption
  • Simple installation with flexible connection options
  • Ready for connection from the get-go
  • Low-noise operation and installed active carbon filter for high user comfort
  • Reliable capacity and low electricity consumption for efficient sewage disposal
  • Simple installation with flexible connection options
  • Can accept 3 x inlet connections in addition to direct toilet connection

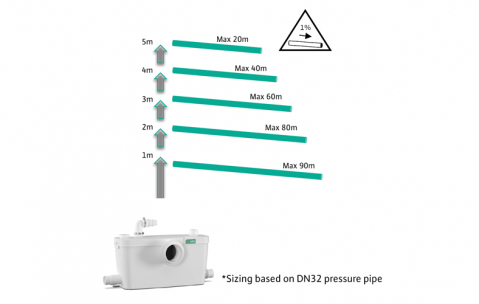

  • Vertical Lift up to 5m
  • Horizontal Run of up to 90m

Tech Data (Specification)

  • Mains connection 1~230 V, 50 Hz
  • Mains connection cable 1.5 m, with shock-proof plug
  • Fluid temperature max. 35 °C
  • Pressure connection DN 32
  • Inlet connection DN 40
  • Protection class IP 44
  • Gross tank volume 17.4 L
  • Switching volume  1 L

Equipment Function

  • Ready-to-plug
  • Thermal motor protection
  • Level checking via a pneumatic pressure transducer
  • Integrated non-return valve
  • Fixation material
  • Active carbon filter

IN THE BOX

  • 1 x Wilo-HiSewlift 3-35
  • 1 x Manual

PACKAGE SIZE & WEIGHT

  • Dimensions 622 x 353 x 243 (W x H x Depth) -mm
  • Gross Weight: 5.7kg
Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Motor housing
    PP-GF30
  • Pump housing
    PP-GF30
  • Tank material
    4191677, HiSewlift3-35
  • Min. fluid temperature T
    5 Celsius
  • Max. fluid temperature T
    35 Celsius
  • Max. ambient temperature T
    40 Celsius
  • Power consumption P1
    400 W / 1.9 A
  • Mains connection
    1~230 V, 50 Hz
  • Insulation class
    F
  • Protection class
    IP44
  • Pipe connection on the suction side
    DN 40
  • Pipe connection on the pressure side
    DN 28
