Descriptions

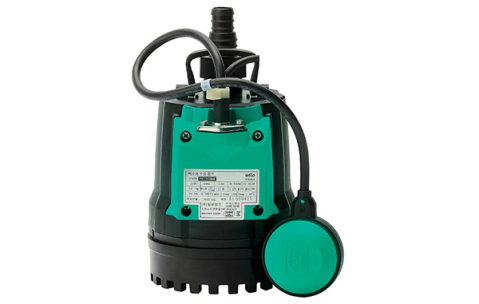

The Wilo PD‑300EA‑10M‑AU is a powerful, compact submersible drainage pump designed for the Australian market.

It features an integral float switch for automatic operation and is ideal for removing clean or lightly contaminated water from sumps, pools, or during flood control.

Fully submersible drainage pump for portable wet well installation for pumping sewage not containing faeces and wastewater.

Hydraulics housing and impeller made of plastic, motor housing made of aluminum alloy.

Hydraulics with vertical pressure connection with hose connection and open multi-channel impeller.

Shroud-cooled single-phase AC motor (cooling by the pumped fluid between the pump and motor housing) with integrated operating capacitor and self-switching thermal motor monitoring.

Connection cable with fitted AS/NZS-10A plug and float switch for automatic level control. The seal is created on the fluid side by a mechanical seal, and on the motor side by a rotary shaft seal.

Specifications

• 300W power–high performance for residential and light commercial use

• Max Head: ~7.5 metres

• Max Flow: ~160 L/min at ~1 metre head

• Integral float switch for automatic operation

• Stainless steel motor shaft for long life

• Double mechanical seal for leak protection

• 1¼″ or 32mm hose adaptor for flexible connection

• Certified as Level3 submersible pump by ERAC

• 2 year warranty

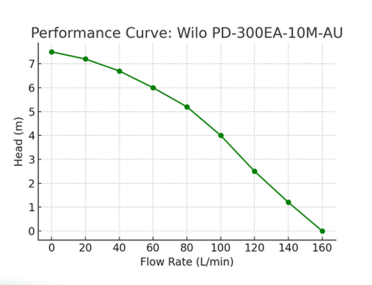

Performance Curve
