Description

"SHIMGE" is specialising in manufacturing water pumps for 30 years, and it is one of the most famous listed companies in China. The annual production of water pumps is more than 1.5 million. To make sure the quality of the products, SHIMGE has currently passed ISO9001, ISO14001 and OHSAS18001 certification, introduced excellent performance management in line with GB/T 19580 and established a sound quality assurance system. SHIMGE has equipped an industry-leading physiochemical testing centre, and its delivery performance inspection platform has reached a precision of grade B (grade 1) in the evaluation conducted by an authoritative agency. In addition, its products have passed GS, CE and UL certification , and met the specifications of the RoHS Directive.

SHIMGE has become one of the top brands in the world, unparalleled quality and comparable to Grundfos & Will.

Application Fileds

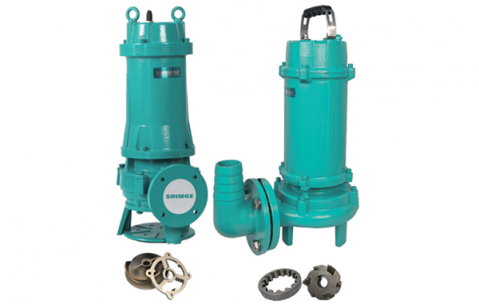

WQ-QG disc cutting sewage submersible pump, implementing Q/ SG151 standard. The electric pump is mainly composed of three parts: electric motor, water pump and seal. The motor is located at the upper part of the electric pump. The motor is a two-pole motor. The water pump is located in the lower part of the electric pump. The oil chamber uses a single-end mechanical seal, and the pump chamber uses a single-end mechanical seal. Each fi xed seal is made of “O” oilresistant rubber seal for static sealing to ensure the reliability of the electric pump seal. The electric pump rotor shaft is composed of 45 steel and 304 stainless steel friction welding to ensure more reliable mechanical strength of the shaft, which can eff ectively improve the wear resistance and corrosion resistance of the shaft, and also facilitate the maintenance and disassembly of the impeller. The water inlet of the electric pump is equipped with a cutting disc, the impeller rotates at a high speed, the cutting disc is fi xed on the pump body, and the long fi ber cloth, hair and other debris in the water can be chopped during operation, and the gap between the spiral impeller and the cutting disc is small.

Product Usage

• Extract domestic sewage

• Excluding industrial sewage

• Biogas digesters

• Sewage treatment

• Aquaculture sewage

IN THE BOX

• 1 x Submersible Pump

• 1 x User's Manual

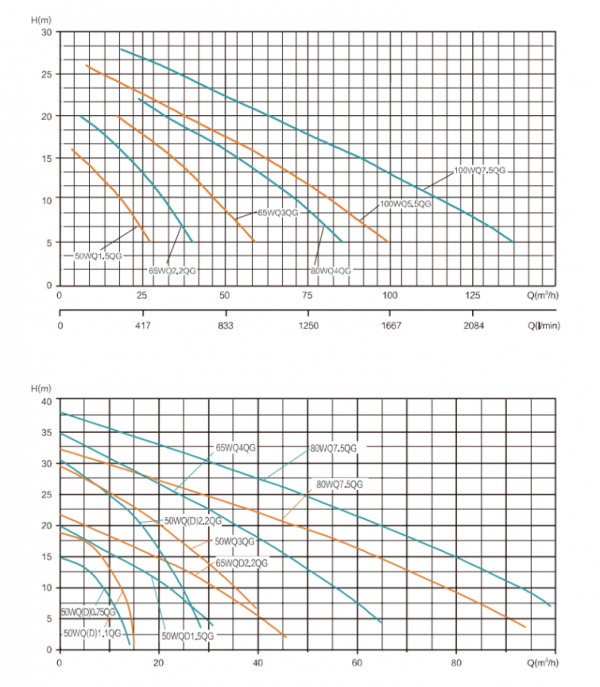

Performance Curve
