MARRO REVERSIBLE CSCR ELECTRIC MOTOR 240V 2.2KW 4 POLE SINGLE PHASE CEMENT MIXER PUMP AIR COMPRESSOR

$275.00
Brand marro
Model ML100L-4-2.2KW
Availability In Stock
General information

Marro, a best quality products provider, delegates the most professional team to appoint the top producers in the world and provide the finest products instead of direct producing. Besides, Marro is dedicated in finding and searching the innovation technology in the industry. By constantly developing and testing, the producers assigned by Marro perfect integrate the cutting-edge technology and creative design in its products to meet the market need.

Marro single phase dual-capacitor induction motor has a simple design, inherently high starting torque and high efficiency. They have very compact design and light weight. Such motors are applied in industry for many applications, such as air compressors, pumps, fans, refrigeration, medical instruments, small machines, etc.

 motor feature pic4

FEATURES

  • CSCR (Capacitor Starts and Capacitor Runs) Motor
  • Circuit breaker installed and dedicated for the particular single phase motor
  • TEFC (Total Enclosed Fan Cooled)
  • Reverse Motor: All motors are reversible
  • Power: 2.2kw
  • Speed: 4 pole, 1400r/min
  • Phase: Single
  • Shaft size (internal): 30mm
  • 1 Year Warranty



OPERATING CONDITIONS

  • Ambient temperature: -15 ℃~40 ℃
  • Altitude: upto 1000m
  • Voltage: 240v/50Hz
  • Protection class: IP54
  • Insulation class: F
  • Cooling method: IC 411



IN THE BOX

  • 1 x Electrical Motor
  • 1 x User's Manual

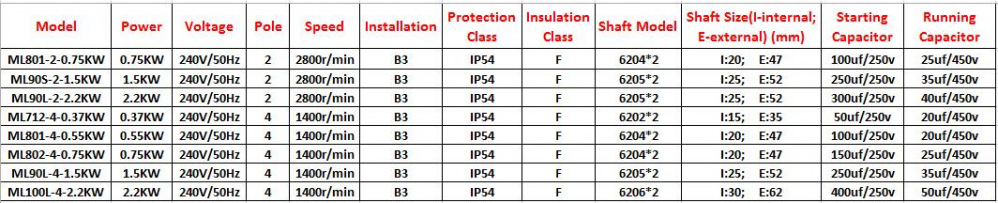

.TACHNICAL DATA4

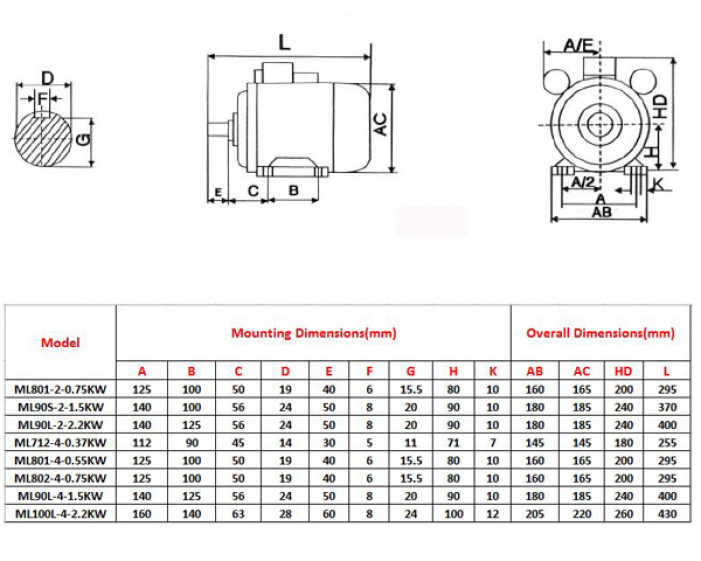

MOTOR DIMENSIONS10

Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Power:
    2.2kw
  • Voltage:
    240V/50Hz
  • Speed:
    1400r/min, 4 pole
  • Protection Class:
    IP54
  • Insulation Class:
    F
  • Shaft Model:
    6206*2
  • Shaft Size(Internal):
    28mm
  • Starting Capacitor:
    400uf/250v
  • Running Capacitor:
    50uf/450v
  • Warranty:
    1 year
