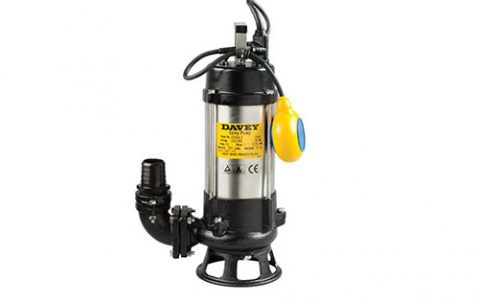

Davey D75SA Single Channel Waste Pumps

$1689.00 $839.00
Brand Davey
Model D75SA
Availability In Stock
General information

Description

  • Single Channel 0.75kW, 240V Waste Pump with automatic float switch

  • High head, single channel, stormwater and sewage handling, submersible sump pumps

  • Capable of pumping soft solids in suspension up to 360lpm

  • Installation with SR50 slide rail kit is recommended - purchase separately



Applications

Ideal for sewage water pumping, storm water pumping, sump emptying, septic effluent disposal, water transfer and pumping of light slurries and factory waste.



Features & Benefits

  • Corrosion resistant 304 stainless steel shaft, motor shell and fasteners for a long service life and an attractive, lasting appearance.

  • Double mechanical shaft seal in oil bath with hard faced silicon carbide/ceramic seal on pump side and sand slinger lip seal for added motor protection and long service life.

  • Automatic resetting thermal overload for protection against overloading.

  • D75SA model fitted with automatic float switch with a present float length for safe unattended operation.

  • All units fitted with10m harmonized HO7RNF oil resistant lead cable with bared ends for easy connection to power supply.

  • Mounting base fitted for a firm and stable positioning during installation and operation.

  • Slide rail kits available for easy removal and re-installation.

  • Hose tail provided for temporary installations; ideal for use with lay-flat hose (hose clamp not included).

  • Available with a choice of single or three phase motors.

  • Optional 316SS version also available.

  • Open impeller, single channel, centrifugal design

  1. - able to pump soft solids in suspension

  2. - less susceptible to blockage

  3. - capable of higher heads/pressure



Pump Curve

curve190



Documents

Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Model
    D75SA
  • Speed
    2 Pole, 2850rpm
  • Insulation Class
    Class F
  • IP Rating
    X8
  • Electrical Lead
    H07RNF x 10m length
  • Supply Voltage
    220-240V
  • 50Hz - Phase
    Single
  • Output Power
    0.75kW
  • Full Load Current
    7.5A
  • Locked Rotor Current
    22.5A
  • Starting
    CSIR
  • Warranty
    1 Year
