Description

• 0.75kW single phase Manual Cutter/Shredder Pump

• Single channel, sewage handling submersible sump pump with capacity up to 375lpm

• Contains a cutting impeller, for handling long or string like materials

• Pump suits the SR50 rail kit - purchase separately

Applications

Ideal for sewage water pumping, sump emptying, septic effluent disposal, water transfer, pumping of light slurries and factory waste and pumping waste water with stringy or long soft solids in suspension.

Features & Benefits

• Corrosion resistant 304 stainless steel shaft, motor shell and fasteners for a long service life and an attractive, lasting appearance

• Double mechanical shaft seal in oil bath with hard faced silicon carbide/ceramic seal on pump side/ sand slinger lip seal for added motor protection and long service life

• Automatic resetting thermal overload for protection against overloading

• D75KA model fitted with automatic float switch with a present float length for safe unattended operation

• All units fitted with10m harmonized cable with bared ends for easy connection to power supply and long life in dirty water

• Mounting base fitted for a firm and stable positioning during installation and operation

• Slide rail kits available for easy removal and re-installation

• Hose tail provided for temporary installations; ideal for use with lay-flat hose (hose clamp not included)

• Available with a choice of single or three phase motors

• Also available in 60Hz model

• Open impeller, single channel, centrifugal design with cutting leading edge

1. able to pump soft solids in suspension
2. less susceptible to blockage
3. capable of higher heads/pressure
4. able to cut string like materials, reducing the risk of blockage in pump or pipework

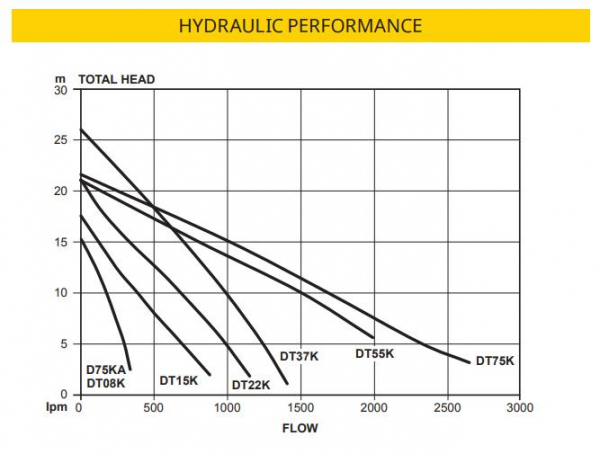

Pump Curve
