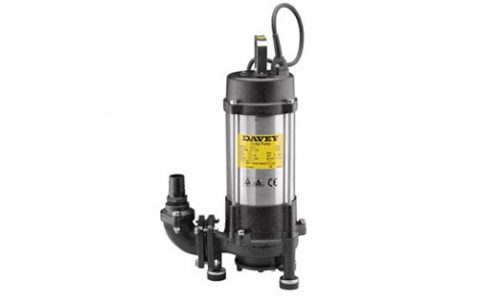

Davey D150G SUMP PUMP Grinder 1.5kW 240V 50Hz 1ph with seal sensor fitted

$4241.00 $2,549.00
Brand Davey
Model D150G
Availability In Stock
General information

Description

Davey submersible Grinder pumps consist of a solids handling grinder inlet with a high head open impeller to pump wastewater containing soft solids in suspension.

Suitable applications include grey and black water pumping, sump emptying, septic effluent and raw sewage disposal, and pumping wastewater with soft solids in suspension.



Motor

  • 2 pole, 2900rpm 50Hz 240V single phase or 415V three phase

  • Submersible with IPx8 enclosure

  • Class F insulation

  • 10 metre HO7RN-F oil resistant power lead and seal sensor lead fitted with bared wire lead ends for easy connection to power supply terminations

  • Seal sensor leads fitted for easy connection to a protection relay to enable timely repairs prior to motor damage. Not fitted to D75G/GA or DT08G models

  • Protected against both high operating temperatures and high current by a built in automatically resetting thermal overload



Applications

Ideal for grey and black water pumping, sump emptying, septic effluent and sewage disposal and pumping of waste water with soft solids in suspension.



Features & Benefits

  • Able to pump soft organic solids, sanitary products, thin rubber products and even some textiles in suspension, by shredding to a slurry

  • Open impeller prevents blockage of the pump by small solids in the slurry

  • High heads and small solids allow connection to small discharge pipe systems, especially suited to pumping waste water to pressure sewer mains

  • Silent operation

  • Quick and easy installation

  • Hose tail supplied with every pump

  • Low maintenance

  • Fully repairable

  • Mounting feet with rubber cushions fitted for a firm and stable positioning during installation and operation for D75G/GA, DT08G, D120G/A, D150G/A, DT12G & DT15G.

  • Adaptable to slide rails – see accessories



PUMP

  • Heavy duty shredding and grinding ring at inlet

  • Centrifugal design, open impeller

  • Double Mechanical shaft seal in oil bath

  • Hard faced Silicon Carbide/Ceramic seal on pump side

  • Sand slinger lip seal for added protection

  • Oring casing sealing

  • Corrosive resistant stainless steel and quality heavy duty powder coated cast iron pump parts

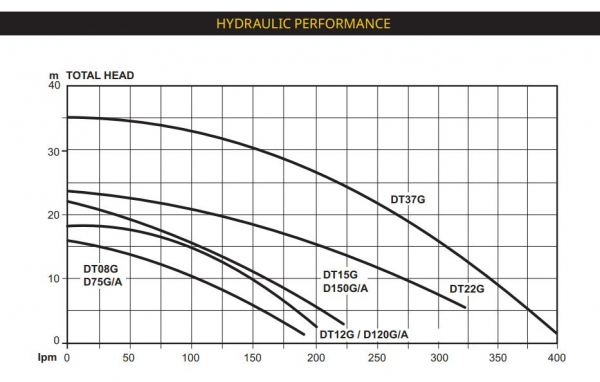

Pump Curve

curve197



Documents

Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Model
    D150G
  • Electrical lead
    10m
  • Phase
    Single
  • Volts
    220-240
  • kW (nameplate)
    1.50
  • Amps – FL
    13.00
  • Insulation
    F class
  • Warranty
    1 Year
