Davey XF192S Electric Water Transfer Pump Includes Silicone Carbide Seal & 316SS

$1301.00 $879.00
Brand Davey
Model XF192S
Availability In Stock
General information



Robust, & compact, 1 or 2 stage centrifugal pumps with silicon carbide seals, corrosion resistant componentry and driven by a TEFC motor. Designed for total head duties to 33m and flows to 225 lpm. All models are fitted with “Thermotection” for closed head pump protection.
Ideal for pumping slightly aggressive, non-volatile liquids without fibres or solids in applications such as:–

  • Sea water
  • Aquaculture
  • Mild acid solutions
  • Washing systems
  • Hydroponics
  • Desalinated water



"S" suffix indicates pump fitted with silican carbide seal (and for XF192S, 316 SS pump casing) and Thermotection.



XF Range

TypeModelP(2) kWVoltageInletOutlet
XF171 71101 0.45 220/250 1"F 1"M
XF221 71201 0.78 220/250 1"F 1"M
XF92 71401 0.58 220/250 1"F 1"F
XF192 71301 0.8 220/250 1"F 1"F

















  • Single and two stage centrifugal pumps made from corrosion resistant components.
  • Ideal for pumping clean, non-volatile liquids without fibres or solids.
  • Models up to 200 lpm and up to 350kPa pressure.

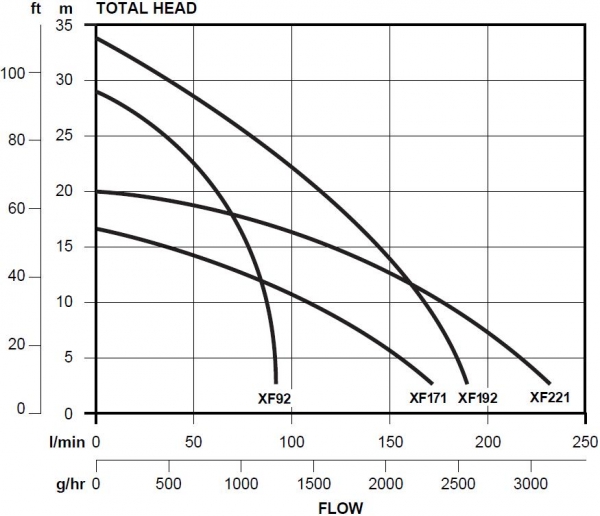

Pump Curve

Davey PumpCurve XF





Documents below are available for download
Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Output Power
    0.80 kW
  • Capacity to
    190 lpm
  • Max. Total Head
    33m
  • Max. Suction Head
    7.5 m
  • Min./Max. Water Temperature
    1 °C/ 50 °C
  • Pump Casing
    Glass filled noryl 316 stainless steel
  • Warranty
    2 Years
