DAB-200M - PUMP SURFACE MOUNTED CAST IRON 175L/MIN 41M 1.47KW 240V

$1,499.00
Brand DAB
Model DAB-200M
Availability In Stock
General information

Description

Self Priming Single Stage Jet Assisted Cast Iron Jet Pump

  • Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.

  • 1.47kW, 2.0hp, 240V, max hd 41m, max flow 175L/m Ports 1 1/2" BSPF In, 1 1/4” BSPF Out

  • The pump is a self-priming surface mounted jet pump and has a suction capability of up to 8m



Application

  • Domestic installations where a suction lift is required

  • Pressure boosting, irrigation and wash down

  • Designed for pumping from tanks, rivers and dams.



Features

  • Self priming centrifugal pump with excellent suction capabilty

  • 240V single phase TEFC motor with in-built auto reset thermal overload to prevent pump from damage



Warranty

2 Year DAB Pumps Warranty

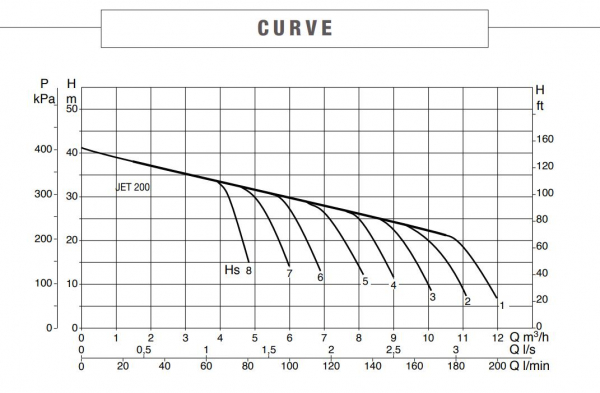

Performance

curve132



Downloads

Product Information and Data Sheets
Download Product Information & Data Sheetsv1.0
Download Product Information & Data Sheetsv1.01
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagramsv1.0
Operation and Installation Manuals
Download Operation & Installation Manualsv1.0
Certificates & Compliance Information
Download Certificates & Compliance Informationv1.0
Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Brand
    DAB Pumps
  • Product Type
    Single Stage Jet Pump
  • Suitable For
    Tank Transfer
  • Bar
    4.1 Bar
  • Flow Range Category
    b. 100 - 199 L/min
  • Flow Rate (L/min)
    175 L/min
  • Hp
    2 Hp
  • kPa
    415 kPa
  • Kilo Watts
    1.47 kW
  • Casing Material
    Cast Iron
  • Head Range Category
    b. 40 - 59 m
  • Max Head (m)
    41 m
  • Port Size Inlet
    1.5 inch BSPF inlet
  • Port Size Outlet
    1.25 inch BSPF outlet
  • Powered
    Electric
  • Warranty (months)
    24 Months
  • Volts
    240 V
  • Watts
    1470 W
