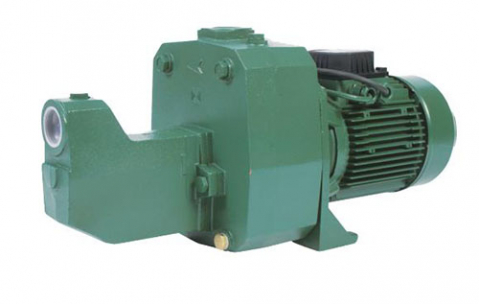

DAB-151T - PUMP SURFACE MOUNTED CAST IRON 75L/MIN 61M 1.1KW 415V

$1,199.00
Brand DAB
Model DAB-151T
Availability In Stock
General information

Description

Self Priming Multistage Jet Assisted Cast Iron Jet Pump

  • Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.

  • 1.1kW, 1.5hp, 415V, max hd 61m, max flow 75L/m Ports 1 1/4” BSPF In, 1" BSPF Out

  • 3 phase pumps require contactor and overload.

  • The pump is a self-priming surface mounted jet pump and has a suction capability of up to 8m.



Application

  • Domestic installations where a suction lift is required

  • Pressure boosting, irrigation and wash down

  • Designed for pumping from tanks, rivers and dams.



Features

  • Self priming centrifugal pump with excellent suction capabilty



Warranty

2 Year DAB Pumps Warranty

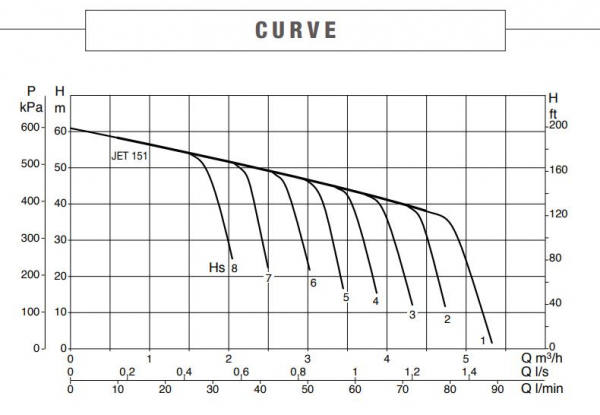

Performance

curve130



Downloads

Product Information and Data Sheets
Download Product Information & Data Sheetsv1.0
Download Product Information & Data Sheetsv1.01
Download Product Information & Data Sheetsv1.02
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagramsv1.0
Operation and Installation Manuals
Download Operation & Installation Manualsv1.0
Certificates & Compliance Information
Download Certificates & Compliance Informationv1.0
Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Brand
    DAB Pumps
  • Product Type
    Multistage Jet Pump
  • Suitable For
    Tank Transfer
  • Bar
    6.1 Bar
  • Flow Range Category
    a. 0 - 99 L/min
  • Flow Rate (L/min)
    75 L/min
  • Hp
    1.5 Hp
  • kPa
    618 kPa
  • Kilo Watts
    1.1 kW
  • Casing Material
    Cast Iron
  • Head Range Category
    c. 60 - 99 m
  • Max Head (m)
    61 m
  • Port Size Inlet
    1.25 inch BSPF inlet
  • Port Size Outlet
    1 inch BSPF outlet
  • Powered
    Electric
  • Warranty (months)
    24 Months
  • Volts
    415 V
  • Watts
    1100 W
