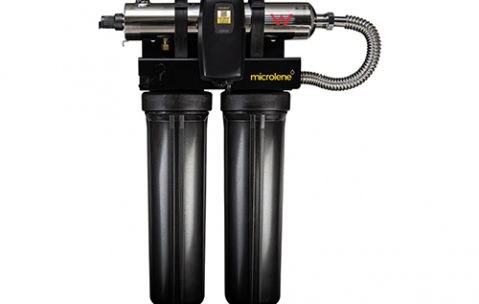

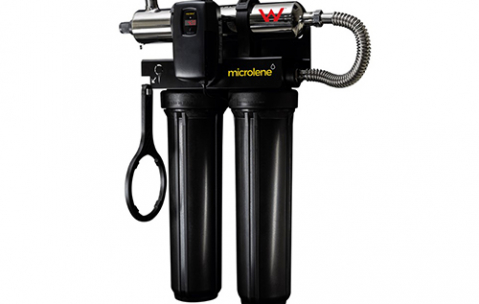

Microlene’s Centurion Xtra Smart 3 Stage UV System Description

Microlene's proven three-stage filtration and ultraviolet disinfection systems can provide continuous clean and safe water from your rainwater tanks.

Note: Microlene disinfection systems cannot remove dissolved metals, chemicals or toxins from the water. Additional treatment is required for these contaminants.

In conjunction with pre-filtration, UV is the best practical option for treating drinking water and is widely used in disinfecting the drinking supplies of not just individual homes, but entire towns.

Installation of a UV system has never been easier with an innovative design that allows for feedwater to enter the filters from either the right or left side of the unit.

The new Centurion XS is "factory ready" to accept a UV intensity module in the future if so desired.

The plug and play platform has the most advanced residential controller on the market with a colour user interface giving a multitude of screens displaying diagnostics, status, warnings and even QR codes for a quick link back to Microlene’s website.

Centurion MCXS Features

• Special filter design with O-ring groove for fail-safe installation

• High maximum operating pressure 827kPa (120 psi), and single manifold heads (no potential leaks between heads)

• Xtra Smart controller with a multitude of screens displaying diagnostics, status, warnings and even QR codes for a link to replacement parts

• NEW controller with keyed technology ensuring only the correct lamps can be used in the system

• 316L stainless steel, axial flow chambers allow for optimum efficiency plus lamp and sleeve service without the need to drain the water

• Coated UV lamps for consistent UV output throughout life

• 10,000 hour LP lamps – longest residential lamplife on the market

• Ready for quick installation and use

• 10 year limited warranty on UV chambers

• Splash-proof controller with constant current electronic ballast designed to IP54 ingress protection rating

Note: Cannot treat water contaminated by metals, chemicals or algal toxins.

Applications

Filtration and disinfection of:

• Rainwater

• Bore or surface water – subject to water quality

Suits small to medium homes potable water supply

Industry leading warranty

• 10 years on stainless UV chamber

• 3 years on electronic controller

• 14 months on lamps, sensors and sleeves

• 12 months on filter housings

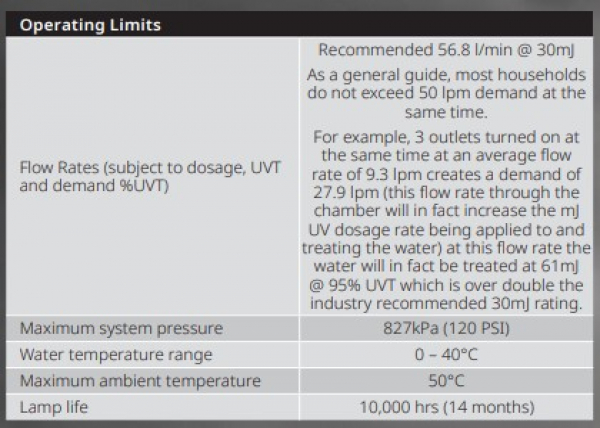

Operating Limits

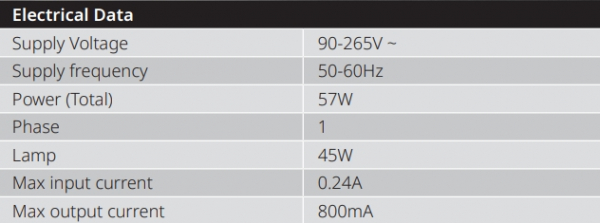

Electrical Data

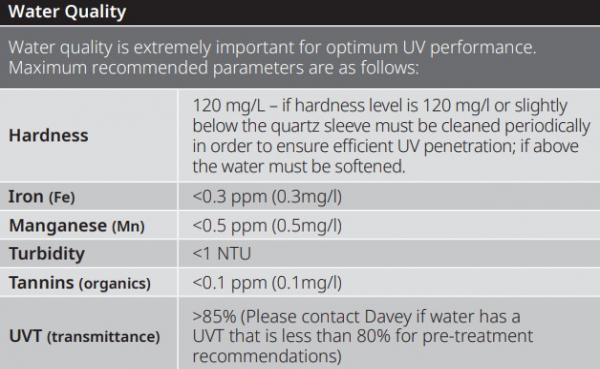

Water Quality

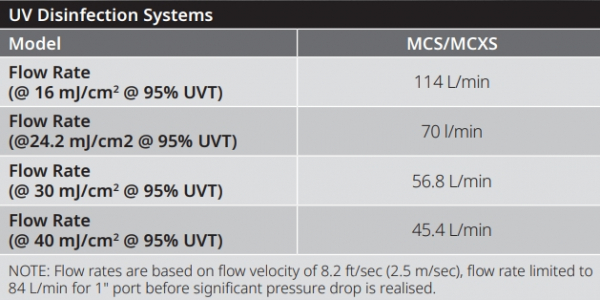

UV Disinfection Systems

Documents
