Description

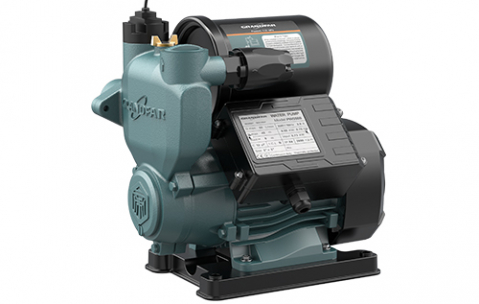

PW-S series automatic self-priming pumps have flow switch, pressure switch and PCB board.

It can collect flow and pressure data by flow switch and pressure switch, then make data analysis by PCB board and automatically give order to be on or off, in this way, the water pump will supply water stably.

This pump have several functions, like 3 seconds delay after start-up, water shortage protection, standby anti-interference and so on.

Pump Configuration

• Pump body: Castiron;

• Motor Shaft: Stainless Steel;

• Impeller: Brass;

• Mechanical Seal: Ceramic - Graphite

Pump Features

With boot 3s delay start, water shortage protection, standby anti-interference and other functions;

Through the water flow and water pressure data collected by flow switch and pressure switch, electronic unit control the pump running / stop, solve the frequently starting problems under low water flow.

Pump Use Precautions

The medium temperature does not exceed +90°C;

The PH value of the medium is between 6.5 - 8.5;

The volume ratio of solid impurities in the medium is not more than 0.1%, and the particle diameter is not more than 0.2mm;

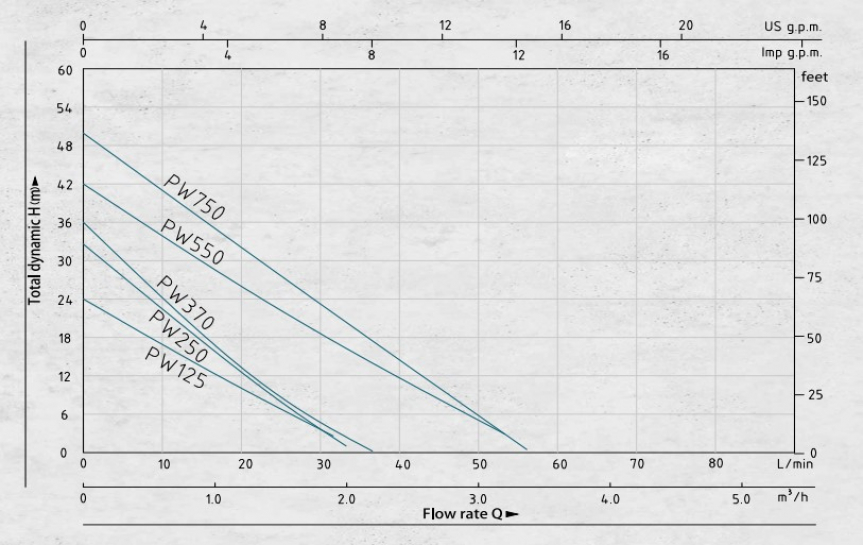

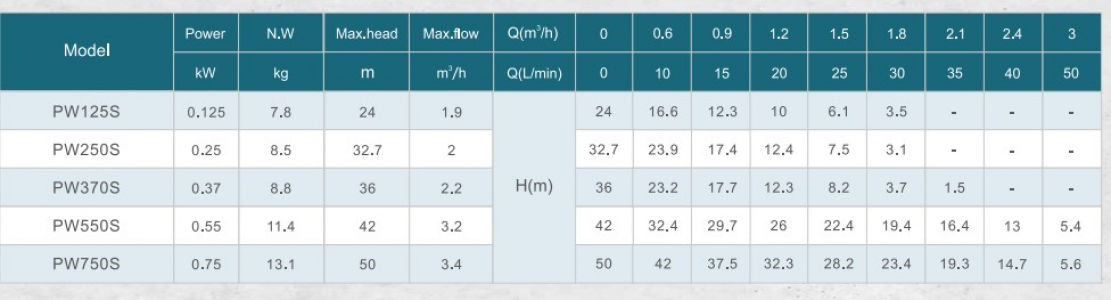

Performance Parameter
