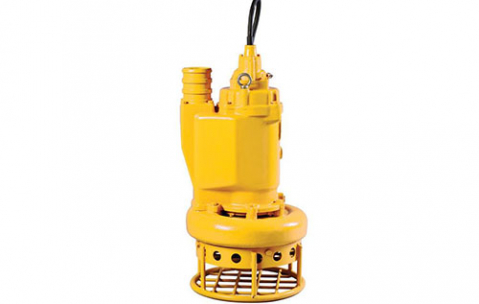

Davey DT37KZN SUMP PUMP Heavy Duty Slurry Handling 3.7kW 415V 50Hz 3ph

$9060.00 $5,419.00
Brand Davey
Model DT37KZN
Availability In Stock
General information

Description

  • KZN Sludge/Slurry Pump  - 3.7kW, 415V

  • KZN model sump pumps are a commercial, heavy duty, top discharge, dewatering pump

  • Designed for pumping very dirty water and farm wastes

  • Featuring heavy duty inlet agitators they are suitable for pumping sludge and slurries



Applications

  • Ground & nuisance water removal

  • Drainage from dams, sewer systems, tunnels, river improvement projects & construction sites

  • Pumping of muddy liquid generated from industrial projects



Why choose thE KZN Sludge/Slurry sump pump?

Corrosion resistant 410 stainless steel shaft and stainless steel shaft sleeve

  • Long service life

  • Impact resistant and long lasting

  • Easily replaceable shaft sleeves save on shaft wear

Multivane, semi-open, wear resistant, high chrome impeller

  • Ability to handle abrasive solid concentrations up to 70% by weight

Pumps have a heavy duty high chrome agitator

  •  Keeps the flow chamber and impeller clear by causing the solids to move in suspension, preventing the pump from clogging

Double silicon carbide mechanical seals

  • Abrasion resistant

  • Located in separate oil chamber to protect the motor

  • Added protection of a heavy duty lip seal

Top discharge with a motor water jacket

  • Slimline design reduces the chance of damage to the outlet in transit

  • Allows for pumping within inches of the bottom, without risk of overheating

Hardened ductile iron volute

  • Cast with extra thick walls (300 Brinnell hardness) is twice as abrasive resistant as standard ductile cast iron, which ensures greater durability

Replaceable wear plate

  • Hardened surface on suction side inhibits the occurrence of erosion that could cause a reduction in pump performance

Large open strainer

  • Protects from larger solids entering the pump

Lifting rings

  • For easy lifting and transportation of the pump

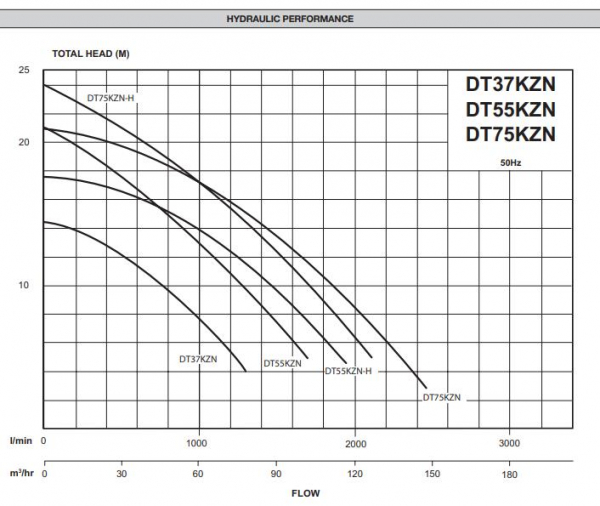

Pump Curve

curve198



Documents

KZN Sludge & Slurry Sump Pump Installation & Operating Instructions

Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Model
    DT37KZN
  • Supply voltage
    380-415V / 50Hz
  • Cable length (m)
    10m
  • Speed (rpm)
    1450
  • Insulation class
    H
  • IP rating
    x8
  • Starting
    DOL
  • Motor kW size (P2)
    3.7
  • Input kW size (P1)
    4.4
  • Start Amps
    50
  • Run Amps
    8
  • Warranty
    1 Year
