Description
KZN Sludge/Slurry Pump - 11kW. 415V - may not be stocked - Consult Davey for ETA
KZN model sump pumps are a commercial, heavy duty, top discharge, dewatering pump
Designed for pumping very dirty water and farm wastes
Featuring heavy duty inlet agitators they are suitable for pumping sludge and slurries
Applications
Ground & nuisance water removal
Drainage from dams, sewer systems, tunnels, river improvement projects & construction sites
Pumping of muddy liquid generated from industrial projects
Why choose thE KZN Sludge/Slurry sump pump?
Corrosion resistant 410 stainless steel shaft and stainless steel shaft sleeve
Long service life
Impact resistant and long lasting
Easily replaceable shaft sleeves save on shaft wear
Multivane, semi-open, wear resistant, high chrome impeller
Ability to handle abrasive solid concentrations up to 70% by weight
Pumps have a heavy duty high chrome agitator
Keeps the flow chamber and impeller clear by causing the solids to move in suspension, preventing the pump from clogging
Double silicon carbide mechanical seals
Abrasion resistant
Located in separate oil chamber to protect the motor
Added protection of a heavy duty lip seal
Top discharge with a motor water jacket
Slimline design reduces the chance of damage to the outlet in transit
Allows for pumping within inches of the bottom, without risk of overheating
Hardened ductile iron volute
Cast with extra thick walls (300 Brinnell hardness) is twice as abrasive resistant as standard ductile cast iron, which ensures greater durability
Replaceable wear plate
Hardened surface on suction side inhibits the occurrence of erosion that could cause a reduction in pump performance
Large open strainer
Protects from larger solids entering the pump
Lifting rings
For easy lifting and transportation of the pump

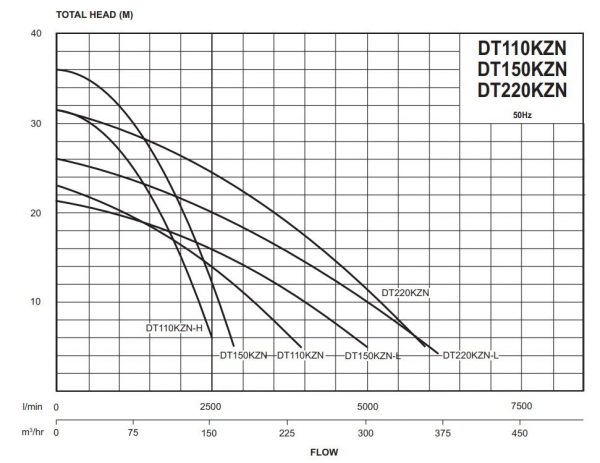

Pump Curve
Documents
KZN Sludge & Slurry Sump Pump Installation & Operating Instructions
