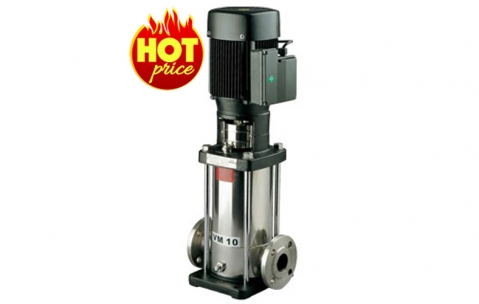

Davey VM1-23 Single Phase Vertical Multistage Pump

Get an instant quote
Brand Davey
Model VM1-23
Availability In Stock
General information



VM VERTICAL MULTISTAGE IN-LINE PUMPS


Davey VM series of stainless steel vertical multistage centrifugal pumps

  • Minimum floor space required and easy to install.
  • Corrosion and abrasion resistance.
  • Low maintenance and operating costs.



The 56 models available provide flow rates up to 80m3/hr and pressure up to 230m.  Suitable for a very wide range of uses, from domestic and farm, to industrial applications.



  • All Stainless Steel Pump Ends - All hydraulic parts are made from 304SS with shafts being made from 316SD to provide higher corrosion and abrasion resistance for a longer pump life.
  • Stainless Steel Companion Flanges - Threaded 304SS companion flanges with gaskets, nuts, bolts and washers are included with every pump for easier installation.
  • Mechanical Seals - Hard-faced mechanical seals provide a longer life. VM16 models and larger have cartridge seals for faster changeover.
  • MEPS compliant - all 3 phase motors are Minimum Energy Performance Standards compliant for greater energy efficiency and lower running costs.
  • Rotating Elements - Replacing all moving hydraulic parts as a single unit ensures minimal maintenance downtime.
  • Teflon Neck Rings - Provide less vibration, noise and sensitivity to thermal expansion to help maintain high pump efficiency.
  • Raised Bottom Bearings - Raising this bearing reduces the risk of damage from sediments and increases the life of the bearing.
  • High Temperatures - Pumps can operate in temperatures from -15 to 70oC
  • High IP Rating - VM motors are IP55 and are suitable for outdoor applications
  • Large Single Phase Motors - Available up to 4.0kW



Pump Curve:



VM1



VM Series:

The 56 models available provide flow rates up to 80m3/hr and pressure up to 230m.

TypeInlet and outletFlanges
VM1 Series 25mm (1") DN25 PN25
VM3 Series 25mm (1") DN25 PN25
VM5 Series 32mm (1 1/4") DN32 PN25
VM10 Series 40mm (1 1/2") DN40 PN25
VM16 Series 50mm (2") DN50 PN25
VM32 Series 65mm (2 1/2") DN65 PN25-40
VM65 Series 100mm (4") DN65 PN25-40
VM90 Series 100mm (4") DN100 PN16

























 Documents below are available for download

Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Model
    VM1-23
  • Output Power
    1.5 kW
  • Inlet and Outlet
    25mm (1")
  • Max. Flow
    33 lpm
  • Max. Head
    138m
  • Warranty
    2 Years
