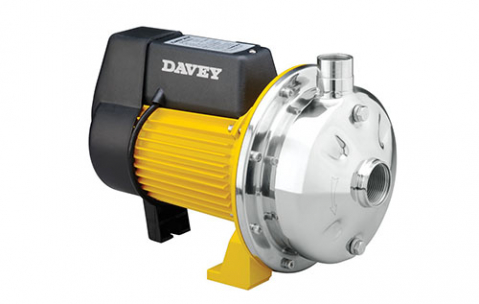

CY70-75 0.75kW 1ph240V AU Plug

$1127.00 $919.00
Brand Davey
Model CY70-75/A
Availability In Stock
General information

Description

The Davey CY series are a rugged and compact pump designed for the medium to large sized, single and multi-storey homes, providing durability through a complete stainless-steel, single stage offering.



APPLICATION

Ideal for pumping clean, non-volatile liquids without fibres or solids in such applications as dairy washdown, small scale irrigation, water transfer, washing systems and pressure boosting.



FEATURES & BENEFITS

• Pump is manufactured from all stainless steel components to handle high water temperatures (80°C) making it ideal for dairy washdown

• TEFC motor is corrosion resistant and excludes dust and dirt

• Motor and pump designed for frequent starts

• Quick and easy installation

• Low maintenance

• Easy to service if required



PUMP

• Single impeller design

• Closed vane 304 stainless steel impellers

• Captive teflon neckring

• 316 stainless steel pump shaft

• 304 stainless steel casing

• Mechanical shaft seal

• O-ring casing seal



MOTOR

• 2 pole, 50Hz (220-240V)

• TEFC with IP55 enclosure

• Class F insulation

• Permanent split capacitor design

• Protected against both high operating temperature and high current by a built-in automatically resetting thermal overload

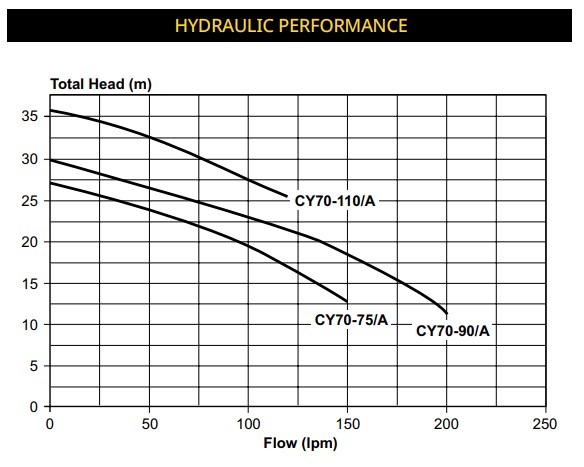

VM5 Hydraulic Performance

pc4

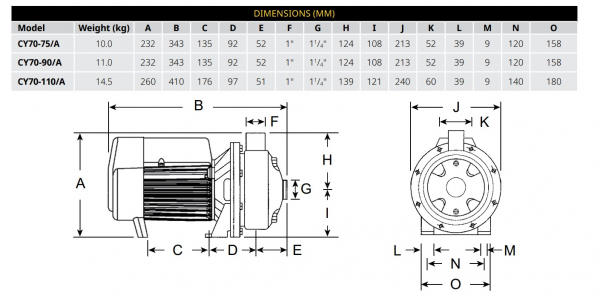

Dimensions (MM)

dc



DOCUMENTS



Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Model
    CY70-75/A
  • Type
    Single stage and transfer pumps
  • Nominal rpm
    2900
  • Volts / hertz / phase
    220-240 / 50 / 1
  • IP rating / insulation
    55 / Class F
  • Amps
    4.5
  • kW (P1) / (P2)
    1.10 / 0.75
  • Power lead
    1.8m lead with Australian 3 pin plug
  • Flow capacities to
    150 lpm
  • Maximum total head
    27m
  • Maximum suction lift
    7m
  • Max. water temperature continuous
    +80ºC
  • Minimum water temperature
    -15ºC
  • Maximum ambient temperature
    55ºC
  • Inlet size
    1.25 inch BSP(F)
  • Outlet size
    1 inch BSP(F)
  • Maximum pump casing pressure
    800 kPa
  • Warranty (year)
    2
  • Max Pressure
    270 kPa
