Davey X50 Dynajet with Supercell Systems Inlc 40P Tank & Pressure Swit

$750.00
Brand Davey
Model X50
Availability In Stock
General information



Compact and economical, single stage jet assisted water pressure system, operated by a pressure switch.

Ideal for average homes with modern appliances to large double storey homes, pressure boosting applications and for water transfer.

DESCRIPTION

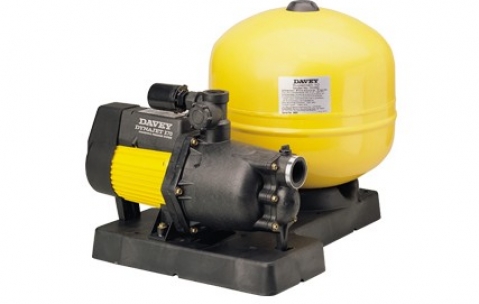

Economical, compact 50, 70 and 90 lpm home pressure systems driven by a single stage jet assisted centrifugal pump.

Base mounted systems include Supercell 40P pressure vessel and pressure switch all mounted on one convenient base.

APPLICATIONS
  • Ideal for average homes with modern appliances to large double story homes
  • Domestic water supply
  • Pressure boosting
  • Automatic water transfer
Pump Curve

Davey PumpCurve X

Dynajet X Range:

TypeDescriptionkW(P2)InletOutlet
72531 Dynajet X50 base mounted pressure system including 40P pressure tank 0.58 1" 1"
72731 Dynajet X70 base mounted pressure system including 40P pressure tank 0.80 1 ¼” 1"
72931 Dynajet X90 base mounted pressure system including 40P pressure tank 1.10 1 ¼” 1"













Documents below are available for download
Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Capacities to
    50 lpm
  • Max. total head
    46m
  • Cut-in Pressure
    180 kPa
  • Max. Liquid Temperature
    50ºC
  • Maximum Suction Lift
    7m
  • AS/NZS 4020
    Safe for drinking water
  • Warranty
    2 Years
