Description

Self Priming Multistage Jet Assisted Cast Iron Jet Pump

• Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.

• 1.85kW, 2.5hp, 415V, max hd 62m, max flow 120L/m Ports 1 1/4” BSPF In, 1" BSPF Out

• 3 phase pumps require contactor and overload.

• The pump is a self-priming surface mounted jet pump and has a suction capability of up to 8m.

Application

• Domestic installations where a suction lift is required

• Pressure boosting, irrigation and wash down

• Designed for pumping from tanks, rivers and dams.

Features

• Self priming centrifugal pump with excellent suction capabilty

Warranty

2 Year DAB Pumps Warranty

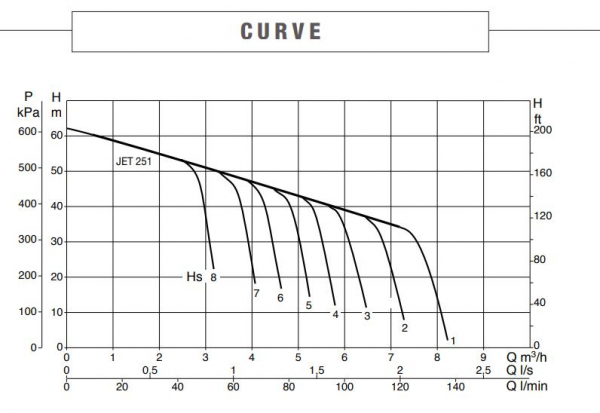

Performance

Downloads

Product Information and Data Sheets

Download Product Information & Data Sheetsv1.0

Download Product Information & Data Sheetsv1.01

Spare Parts Information and Exploded Diagrams

Download Spare Parts Information & Exploded Diagramsv1.0

Operation and Installation Manuals

Download Operation & Installation Manualsv1.0

Certificates & Compliance Information

Download Certificates & Compliance Informationv1.0
