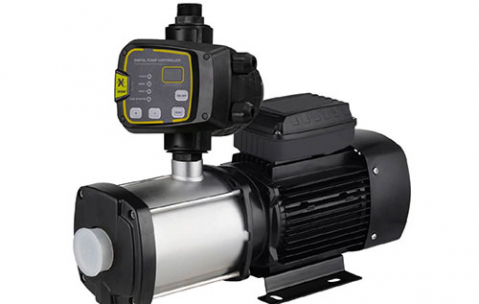

BIA-MULTI103NXTP - Horizontal Multi Stage Pump with nXt PRO Pump Controller 49m 2.2kW 240V

$1,159.00
Brand BIANCO
Model MULTI103NXTP
Availability In Stock
General information

Description

Bianco Stainless Steel Horizontal Multi Stage Pump with nXt PRO Intelligent 2 mode controller

Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.

2.2kW, 3.0hp, 240V, max hd 49m max flow L/m, 10 taps

Ports 1-1/4" BSPF In, 1" BSPM Out



Features

  • The new nXt Pro intelligent electronic pump control is fitted and wired to the pump with plug and play leads for automatic starting, stopping and restarting after power loss or water loss
  • The nXt Pro controller has an in built check valve to prevent water back flow through the pump
  • Two operating modes: Mode 1 and Mode 2
  • In Mode 1, the sarting pressure can be adjusted and in Mode 2, both the starting and stopping pressures can be adjusted to fine tune the installation. A pressure tank is required for Mode 2.
  • Corrosion resistant pump body, diffuser and impeller
  • Mechanical shaft seal
  • comes complete with plug and play leads
  • 240C single phase TEFC motor with in built auto reset thermal overload

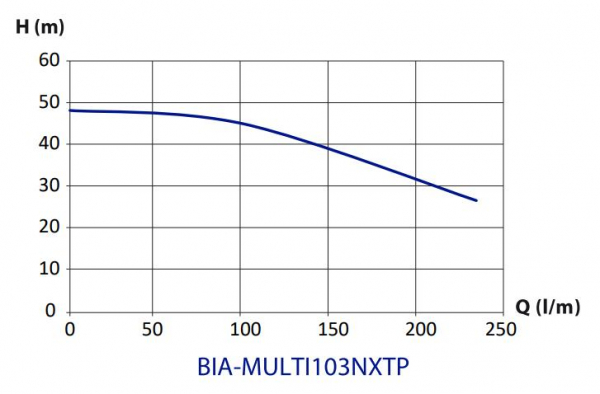

Performance

curve91



Warranty

2 Year Bianco Pumps Warranty



Downloads

Product Information and Data Sheets

Download Product Information & Data Sheetsv1.0

Spare Parts Information and Exploded Diagrams

Download Spare Parts Information & Exploded Diagramsv1.0

Operation and Installation Manuals

Download Operation & Installation Manualsv1.0

Certificates & Compliance Information

Download Certificates & Compliance Informationv1.0

Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Brand
    Bianco Pumpz
  • Product Type
    Pressure System
  • Suitable For
    Clean Water
  • Bar
    4.8
  • Amps
    10.8
  • Flow Range Category
    c. 200 - 299 L/min
  • Flow Rate (L/min)
    233
  • Hp
    3
  • kPa
    480
  • Kilo Watts
    2.2
  • Max Flow (L/min)
    233
  • Head Range Category
    b. 40 - 59 m
  • Max Head (m)
    49
  • Volts
    240
  • Warranty
    2 years
