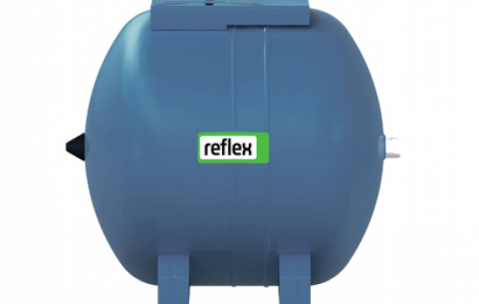

White International Reflex 25L Horizontal Pressure Tank for Drinking Water- Suit Water Pumps

$199.00
Brand White International - Reflex
Model REF-HW25
Availability In Stock
General information

PRODUCT DESCRIPTION

Reflex Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.



APPLICATIONS

• Booster Systems

• Borehole Systems

• Sprinklers

• Irrigation Systems

• HVAC

• Thermal Expansion

• Water hammer arresting



FEATURES & BENEFITS

• Manufactured in EU

• 304 Stainless Steel water connection

• Corrosion resistant for long life

• UV resistant epoxy coating with a minimum thickness of 30 micron in blue RAL5007

• Air valve with sealing cap eliminates leaks

• Food grade approved high-grade butyl membranes and bladders WRAS, ACS,AS NZS4020

• 5 Year Tank Replacement Guarantee





Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Nominal volume
    25L
  • Nominal Draw-off
    9L
  • Continuous max. temp
    70 C
  • Continuous max. pressure
    10 Bar
  • Pre-charge
    4 Bar (58PSI) Nitrogen
  • Diameter
    280mm
  • Height
    301mm
  • Connection
    G 1
  • Net Weight
    5.5kg
