PRODUCT DESCRIPTION

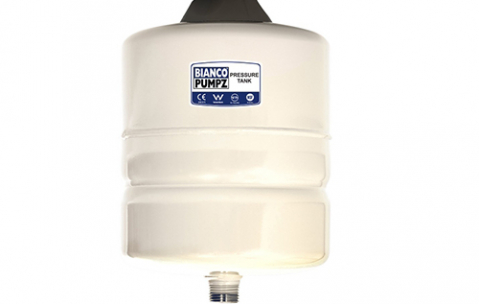

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.
A pressure tank is engineered to optimize the performance of your pressure pumping system by storing a volume of pressurised water.
This increases the draw-down in the case of small water demand or leaks thus saving your pump from excessive starts and stops.
A pressure tank protects and extends the life of your pump and will reduce noise and needless power consumption.
Applications
Booster Systems
Borehole Systems
Sprinklers
Irrigation Systems
HVAC
Thermal Expansion
Water hammer arresting
SPECIFICATIONS
Nominal volume: 8L
Nominal Draw-off: 3L
Continuous max. temp 90°C
Continuous max. pressure: 10 Bar (145PSI)
Pre-charge: 4 Bar (58PSI)
Diameter: 203 mm
Height: 304mm
Net Weight: 1.9Kg
System Connection: GI
Colour: Almond
FEATURES & BENEFITS
304 Stainless Steel water connection
Corrosion resistant for long life
UV resistant epoxy coating with a minimum thickness of 30 micron in Almond
Air valve with sealing cap eliminates leaks
Food grade approved high-grade diaphragm ACS, AS/NZS4020
Warranty
5 Year Tank Replacement Guarantee
Documents
Download Product Information & Data Sheetsv1.0
Download Operation & Installation Manualsv1.0
