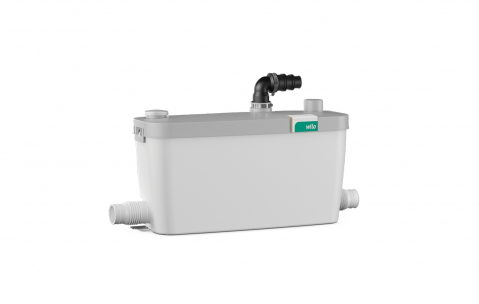

Wilo HiDrainlift 3-35 Compact & Quiet Under-sink Pumping Stations

$639.00
Brand Wilo
Model Wilo-HiDrainlift 3
Availability In Stock
General information

Compact and quiet, the HiDrainlift is Wilo’s premium under-sink pumping station. With capacity for disposal from up to three sources (shower, washbasin, washing machine, dishwasher etc.) the HiDrainlift 3 is a comprehensive solution for wastewater disposal.

  • Automatic disposal of wastewater from up to three sources (shower, washbasin, washing machine, dishwasher etc.)
  • Dimensions 511 x 264 x 187 (width x height x depth-mm)
  • Maximum fluid temperature 35°C (up to 75°C for maximum 5 minutes)

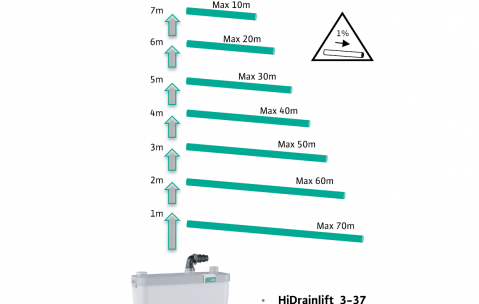

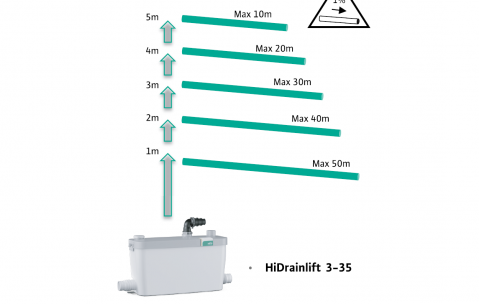

  • Max vertical lift 7m
  • Max horizontal run of up to 70m
  • Mains connection 1~230 V, 50 Hz
  • Mains connection cable 1.5 m, with shock-proof plug
  • Fluid temperature max. 35 °C (up to 60/ 75 °C in short-time duty for 5 minutes, depending on the model)
  • Pressure connection DN 32
  • Inlet connection DN 40
  • Protection class IP 44
  • Gross tank volume 16 l / 15.5 l
  • Switching volume  2 l / 2 l

Equipment Function

  • Ready-to-plug
  • Thermal motor protection
  • Level checking via a pneumatic pressure transducer
  • Integrated non-return valve
  • Fixation material
  • Active carbon filter

IN THE BOX

  • 1 x Wilo-HiDrainlift 3
  • 1 x Manual

PACKAGE SIZE & WEIGHT

  • Dimensions 511 x 264 x 187 (W x H x Depth) -mm
  • Gross Weight: 5.6kg
Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Motor housing
    PP-GF30
  • Pump housing
    PP-GF30
  • Tank material
    4191679, HiDrainlift3-35
  • Min. fluid temperature T
    5 Celsius
  • Max. fluid temperature T
    35 Celsius
  • Max. ambient temperature T
    40 Celsius
  • Power consumption P1
    400 W / 1.7A
  • Mains connection
    1~230 V, 50 Hz
  • Insulation class
    F
  • Protection class
    IP44
  • Pipe connection on the suction side
    DN 40
  • Pipe connection on the pressure side
    DN 32
