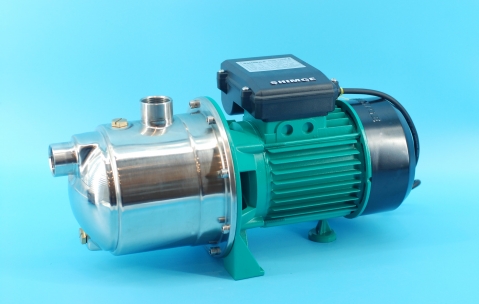

Shimge JET750G1 Stainless Steel Self-priming Surface Jet Pump

$225.00
Brand Shimge
Model JET750G1
Availability In Stock
General information



"SHIMGE" is specialising in manufacturing water pumps for 30 years, and it is one of the most famous listed companies in China. The annual production of water pumps is more than 1.5 million. To make sure the quality of the products, SHIMGE has currently passed ISO9001, ISO14001 and OHSAS18001 certification, introduced excellent performance management in line with GB/T 19580 and established a sound quality assurance system. SHIMGE has equipped an industry-leading physiochemical testing centre, and its delivery performance inspection platform has reached a precision of grade B (grade 1) in the evaluation conducted by an authoritative agency. In addition, its products have passed GS, CE and UL certification , and met the specifications of the RoHS Directive.

SHIMGE has become one of the top brands in the world, unparalleled quality and comparable to Grundfos & Will.

The Shimge stainless steel self-priming surface jet pump is suitable for transferring water without abrasive particles or other liquid whose properties are similar to water. It is also widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc.

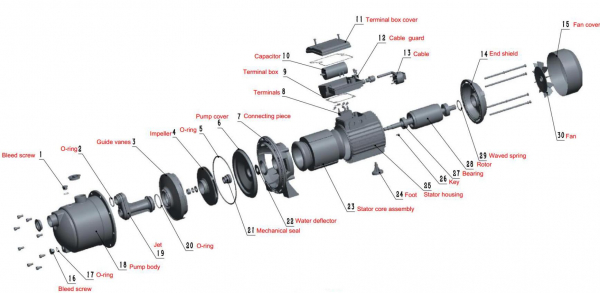

Weixin Screenshot 20230810142220

FEATURES

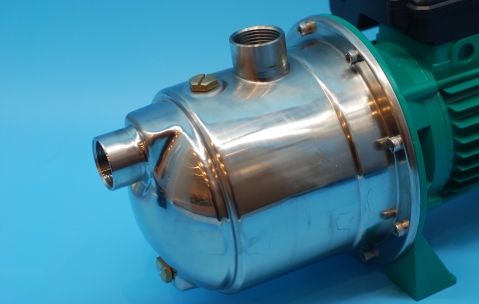

  • 304 stainless steel pressed tensile pump body and cover
  • Hydraulic optimization design, excellent performance
  • Nozzle, guide vane and the impeller PPO engineering plastics
  • Complete in specifications, meet drinking water standards
  • Max. Working pressure: 6bar / 87psi
  • Output power: 0.75 kw
  • Max. head:40 m
  • Max Flow: 85 L/min
  • Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water
  • Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc
  • 2 Year Warranty



APPLICATION LIMITS

  • Suction head up to 9m
  • Liquid temperature up to +40℃
  • Ambient temperature up to +40℃
  • Max. Working pressure: 6bar / 87 psi
  • Voltage fluctuation should not exceed 10% of rated value
  • pH: 6.5 to 8.5



MOTOR

  • Single-Phase 240V/50Hz

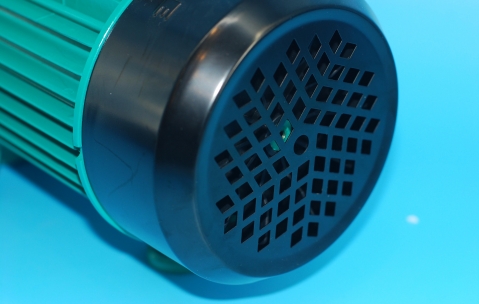

  • Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
  • Protection: IP44
  • Insulation: Class B



IN THE BOX

  • 1 x Jet Pump
  • 1 x User's Manual

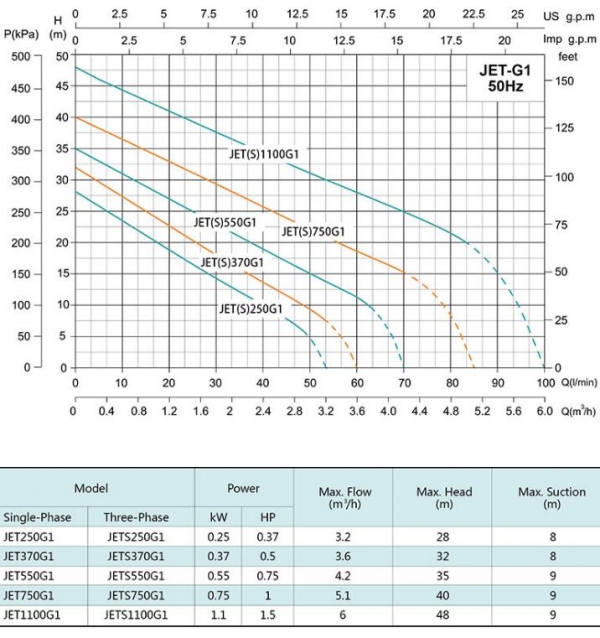

performance3

Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Manufacturer:
    Shimge
  • Maximum liquid temperature:
    +40°C
  • Maximum ambient temperature:
    +40°C
  • Maximum head:
    40 m
  • Maximum flow:
    85 L/Min
  • Maximum working pressure:
    6bar / 87psi
  • Suction:
    head up to 9 m
  • Power:
    0.75 kw
  • Voltage:
    240V / 50Hz
  • Protection Class:
    IP44

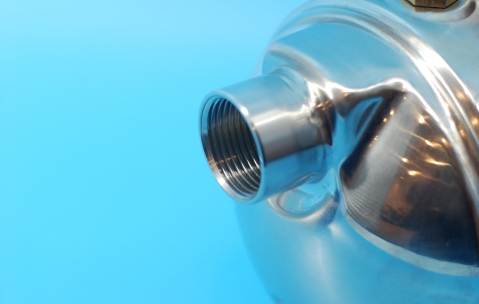

  • Thread Connection Size:
    G1 1/4 inch; F
  • Insulation class:
    B
  • Material:
    304 stainless steel pressed tensile pump body and pump cover
  • pH:
    6.5 to 8.5
  • Warranty:
    2 years
