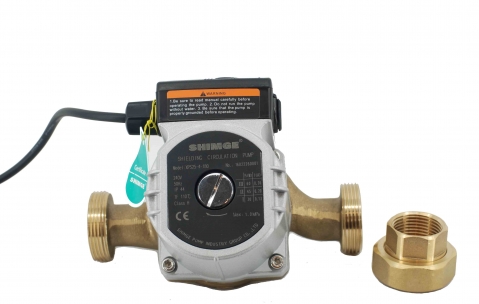

Shimge XPS25-6-180 BRASS 3 Speed Hot Water Circulation Booster Pump Low Noise

$150.00
Brand Shimge
Model XPS25-6-180
Availability In Stock
General information



"SHIMGE" is specialising in manufacturing water pumps for 30 years, and it is one of the most famous listed companies in China. The annual production of water pumps is more than 1.5 million. To make sure the quality of the products, SHIMGE has currently passed ISO9001, ISO14001 and OHSAS18001 certification, introduced excellent performance management in line with GB/T 19580 and established a sound quality assurance system. SHIMGE has equipped an industry-leading physiochemical testing centre, and its delivery performance inspection platform has reached a precision of grade B (grade 1) in the evaluation conducted by an authoritative agency. In addition, its products have passed GS, CE and UL certification , and met the specifications of the RoHS Directive.



SHIMGE has become one of the top brands in the world, unparalleled quality and comparable to Grundfos & Will.



Pumps with bronze or stainless steel housings are also suitable for use in hot water service systems.



Examples of typical applications are mix water underfloor heating system, air energy hot water circulation system, solar hot water circulation system, etc.



FEATURES

  • Brass Pump body
  • 3 Speed adjustment
  • 100% Duty cycle - designed for continuous operation
  • In-line booster pump for pressure boosting
  • Allows fluid temperature up to 110°C
  • Low Noise
  • No Leakage
  • Easy to operate and maintenance
  • 6m max head, Up to 67L/min
  • 220V / 50Hz
  • Suitable for solar hot water system
  • Industrial circulation systems, cold water cooling systems and air-conditioning systems
  • 1 Year Warranty

 Weixin Screenshot 20230810134232

APPLICATIONS

The circulation pumps are applied in sun energy, water heaters, industrial circulation systems, heating ventilating, small air conditioners, automatic water supply pressure for household, air source and ground heat source etc.

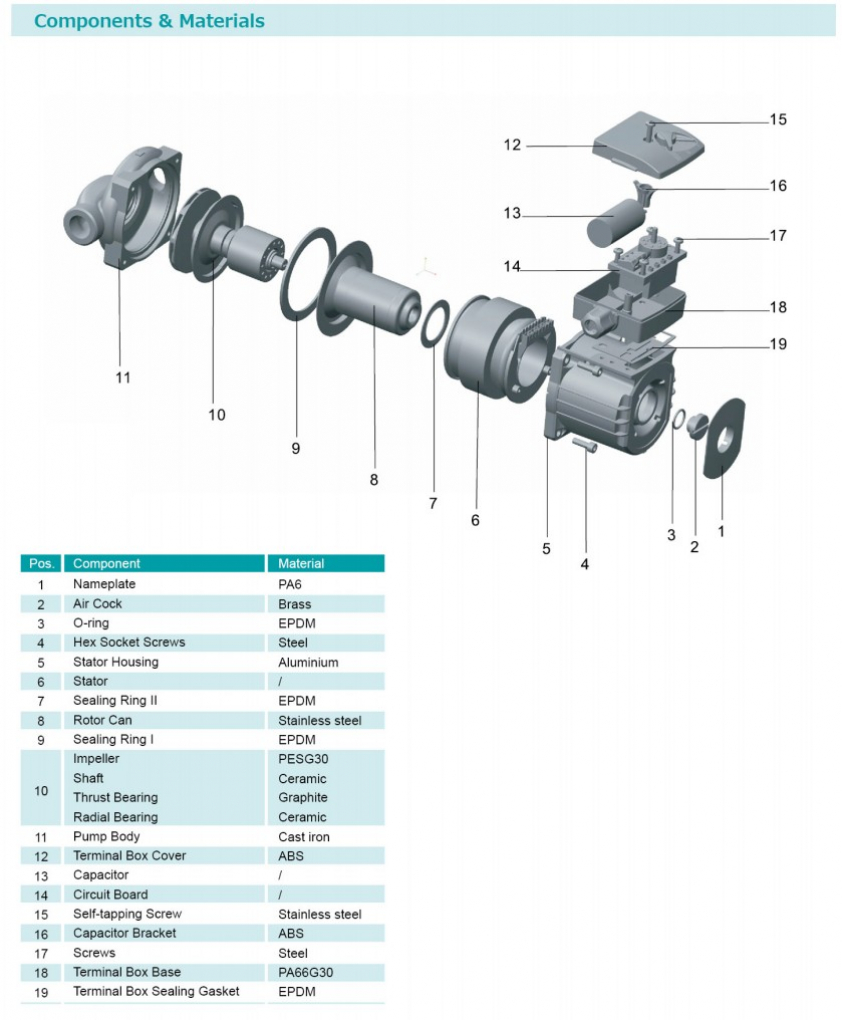

MATERIAL

  • Die-cast aluminium motor casing. Technopolymer impeller. Ceramic driving shaft mounted on graphite brushings lubricated by the pumped liquid itself.
  • Stainless steel protective rotor sleeve, stator sleeve.
  • Ceramic thrust bearing, E.P.D.M. "O"rings.
  • Cast iron body; Three-shift adjustable speed.
  • No overload protection required.


MOTOR

  • Protection level: IP44
  • Voltage/Herz: 220V; 50Hz
  • Insulation class: H
  • Installation: with motor axis horizontal



IN THE BOX

  • 1 x Hot Water Pump
  • 2 x Unions & Gaskets
  • 1 x User's Manual



overview20

Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Manufacturer:
    Shimge
  • Pump material:
    Brass
  • Liquid temperature:
    +2°C - +110°C
  • Voltage:
    220V / 50Hz
  • Maximum head:
    6m
  • Maximum flow:
    67L/Min
  • Pipe distance:
    180mm
  • Input power on speed 3:
    90w
  • Protection Class:
    IP44
  • Thread Connection Size:
    G1 1/4 inch F
  • Insulation class:
    H
  • Installation:
    the motor shaft must be kept in horizontal direction
  • pH:
    6.5 to 8.5
  • Pumped liquid characteristics:
    Clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water
  • Warranty
    1 Year
