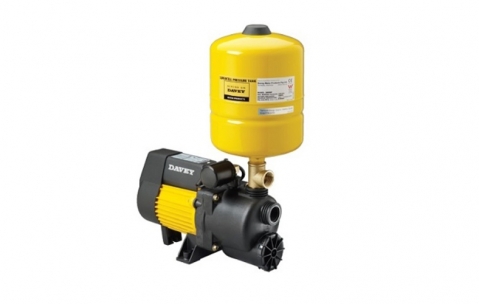

Davey XP35P8 Jet Assisted Centrifugal Pump with Pressure Switch and 8L Pressure Tank

$419.00
Brand Davey
Model XP35P8
Availability In Stock
General information

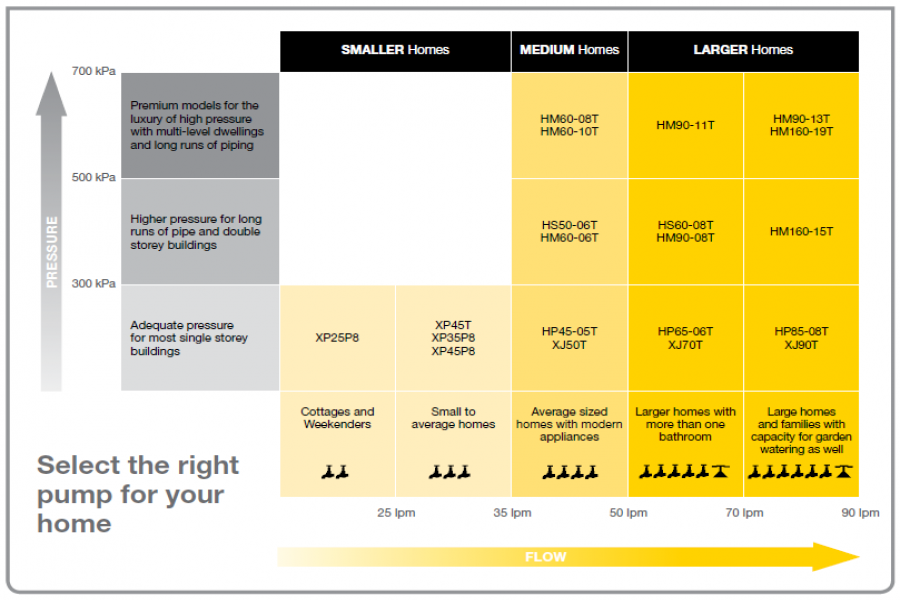

Davey Pump Guide



Davey XP jet pressure system with Torrium controller.  Provides constant water pressure in small homes when sourcing water from an underground or partially buried tank.

Also available with a pressure switch and SuperCell pressure tank.



Features:

  • Robust And compact
  • Single stage jet assisted pump with Torrium2 constant flow control and loss of prime device for automatic water pressure.
  • Suitable for use on small to average sized single storey homes

Ideal for pumping clean, non-volatile liquids without fibres or solids in such applications as:

  • Household water supply
  • Irrigation
  • Water transfer
  • Washing systems
  • Pressure boosting



TypeDescriptionFlow RatekW(P2)InletOutlet
XP25P8 XP jet assisted centrifugal pump with pressure switch and 8L pressure tank 25 lpm 0.31 1" F 1" F
XP35P8 XP jet assisted centrifugal pump with pressure switch and 8L pressure tank 35 lpm 0.45 1" F 1" F
XP45P8 XP jet assisted centrifugal pump with pressure switch and 8L pressure tank 45 lpm 0.45 1" F 1" F
XP45T XP jet assisted centrifugal pump with Torrium controller (XP450T) 45 lpm 0.45 1" F 1" F

Documents below are available for download

• XP25P8 with Supercell Datasheet

• XP35P8 Datasheet with Supercell

• XP45 with Torrium Datasheet

• XP25 with Pressure Switch Datasheet

• XP35 with Pressure Switch Datasheet

• Torrium2 Datasheet

• XP and XJ with Torrium Installation and Operating Instruction

• XP with Supercell Instruction
Spec & Features
  • Features and technical specification of the product. Please contact us for further information and specifics.
  • Supply Voltage
    220-240V
  • Output power
    0.45kW
  • Full load current
    2.4 amps
  • Enclosure class
    IP55
  • Pressure switch cut-in
    140kPa
  • Capacities to
    35 lpm @ 140kPa
  • Max. total head
    35m
  • Max. suction lift
    6m
